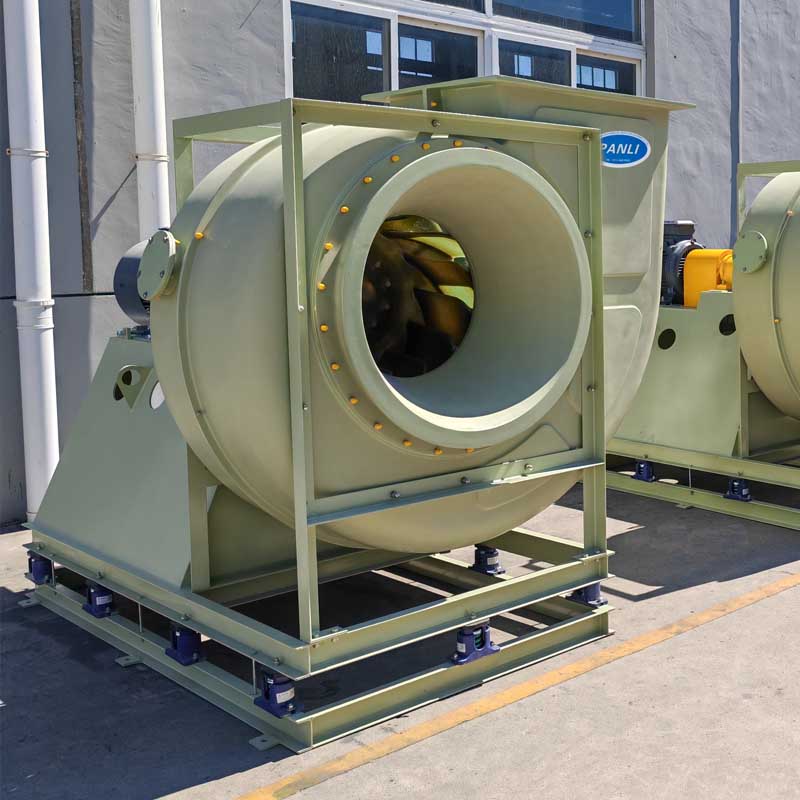

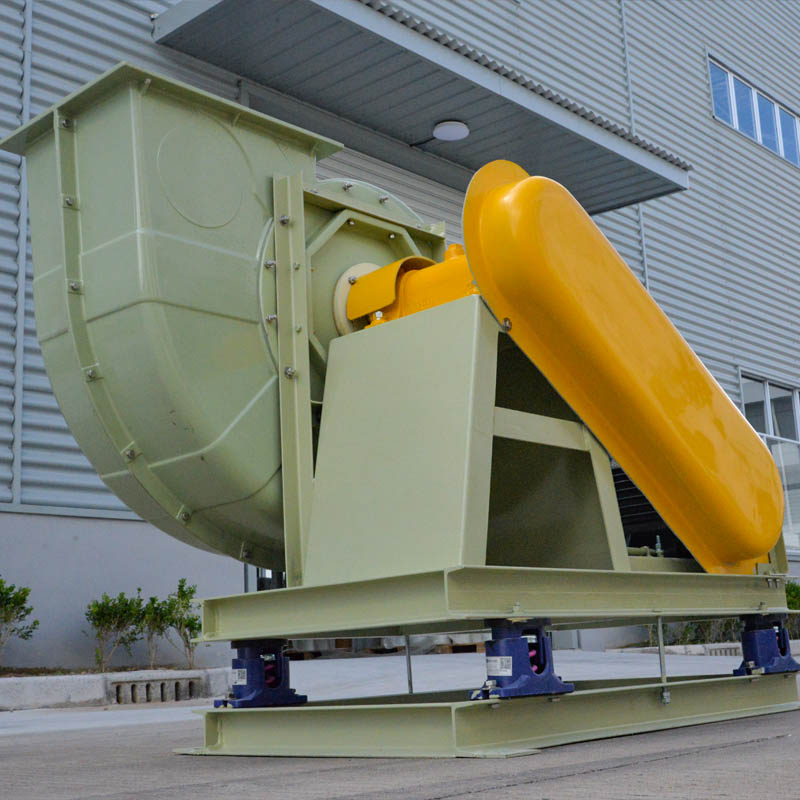

Anticorrosive Fiberglass Fan

Fan model: GFB630C
Transmission mode: belt drive
Fan air volume: 10996~20477 CMH
Fan pressure: 2823~1433 Pa
Operating temperature: ≤80℃
Fan efficiency: ≥82.3%
Vibration value: ≦2.5mm/s
Fan speed: 1870rpm
Motor power: 15KW
Air duct diameter: DN600 [Recommended with PVC shock absorber soft connection]

Product Introduction

01CQC Energy-saving product certification

Anticorrosive fiberglass fan test in line with GB19761-2009 national standard, fan manufacturer equipment, CQC China energy-saving product certification, continuous operation of 24 hours troublefree operation, maintenance and long service cycle, energy saving, the whole unit testing computer stress and strain analysis, stable fan operation.

02 Material accessories selection

OIL bath closed bearing seat, lubricating protection bearing, and shaft core is not corroded by corrosive gas, wear resistance, strict quality control, reduce the frequency of failure, modular production, unified specifications, complete parts and materials, support 2 days fast delivery, reduce operating costs, ensure installation and use.

03 Provide service team

Support on-site measurement of fan performance, vibration, noise and other tests, including test reports, and a number of delivery data is complete, prevent failure before it happens, ensure that the fan operates in the best condition, tailored for users to ensure that the fan operates at the best efficiency point, avoid surge damage area.
