Biological Deodorization Box Fan

Fan model: FB 1000C
Fan air volume: 27931~40415 CMH
Fan pressure: 3031-1660 Pa
Fan direction: 90 degrees right rotation (E direction)
Fan noise: ≤ 75 dB
Operating temperature: ≤ 80 ℃
Fan material: all fiberglass reinforced plastic (FRP)
Fan speed: 1230rpm
Motor power: 30KW
Air duct diameter: DN900~DN1100 【 Special odor and leakage prevention device 】

Product Introduction

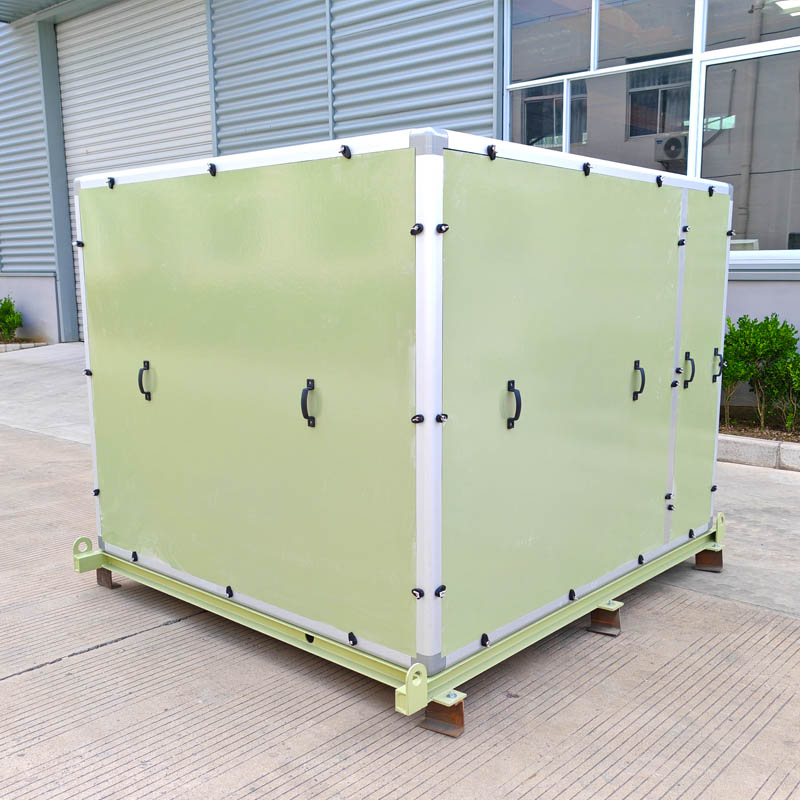

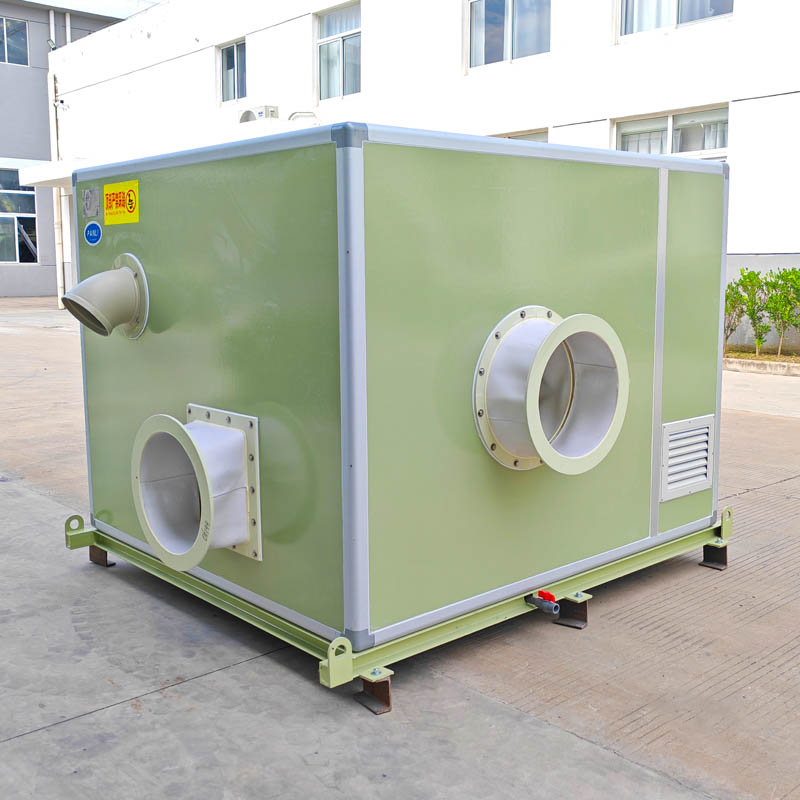

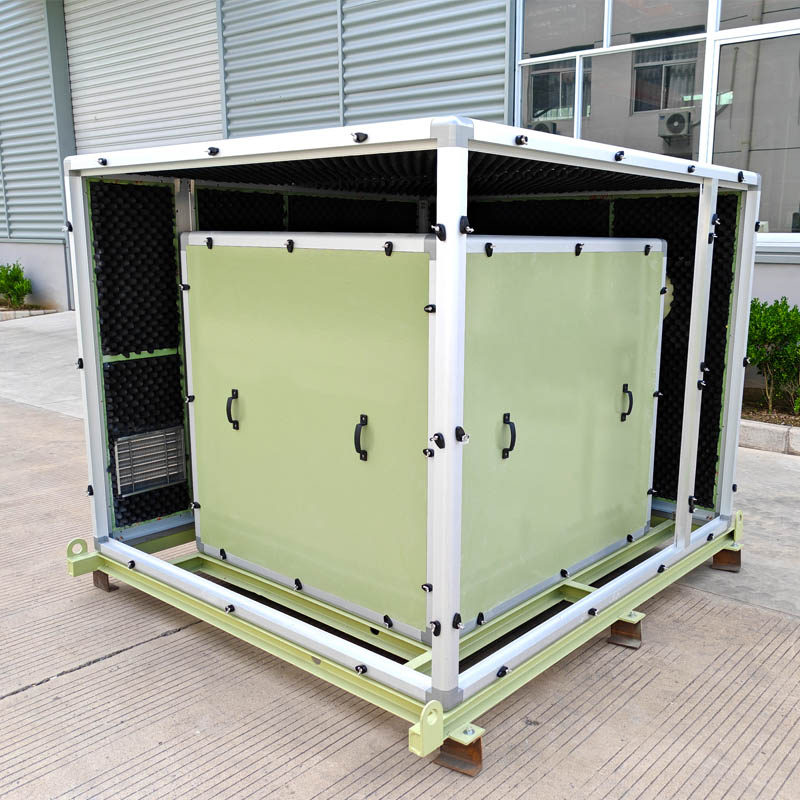

The fan deodorization box is made of all fiberglass reinforced plastic (FRP) material, with an outer fiberglass panel and an inner soundproof cotton. It is designed with an independent cooling fan, reserved with access doors, drainage valves, and wiring holes. It is easy to maintain in the later stage, meets noise standards, saves energy consumption, and has been tested to have low vibration. The equipment operates without any faults in 24 hours.

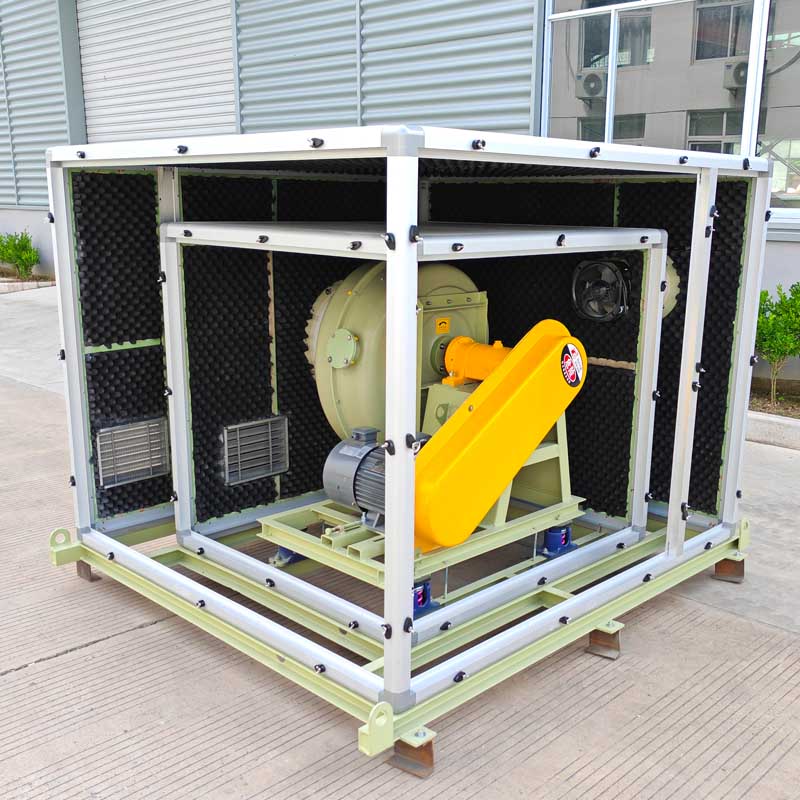

The PVC soft connection design at the inlet and outlet of the fan blocks the propagation of vibration, prevents the overall vibration of the soundproof box and pipeline, and generates unnecessary losses. The oil type bearing box and rolling bearings operate to reduce friction and increase service life. The noise value can be reduced by 5-15 decibels, and can be used with D-type pipeline flange connections.

Full day one-on-one consultation service, 24-hour online listening, free design of technical solutions, selection of fan models, support for customization, after-sales service: 1-hour problem-solving, worry free after-sales, free of manual maintenance, one-time purchase, lifelong maintenance.

Applicable scenarios

The fan of the biological deodorization box has various uses and working conditions, and is commonly used in environments such as biological deodorization, sewage deodorization, and animal husbandry odor purification. In fact, noise pollution is becoming increasingly serious, affecting the daily rest of nearby residents. Continuously complaining about noise issues is also a headache for business owners. There are too many complaints, and it is inevitable to have losses. Choosing a biological deodorization soundproof box not only reduces noise, but also blocks odor leakage for the second time. It can be successfully accepted. Currently, the biological deodorization industry is widely used, making it more stable, quiet, and suitable for biological odor control projects.
