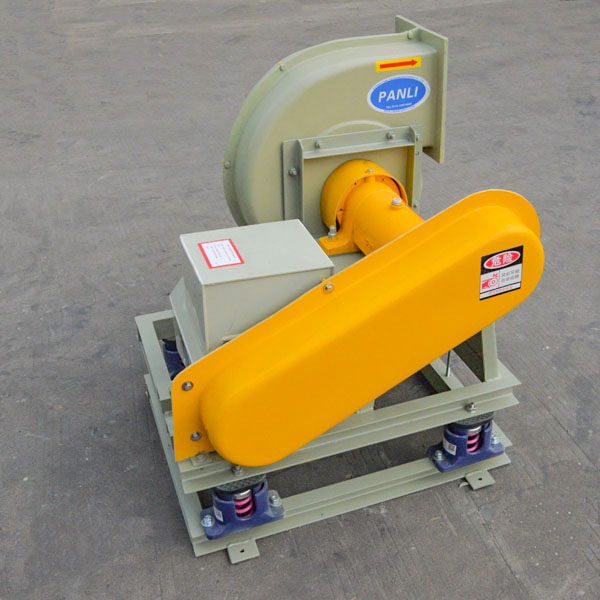

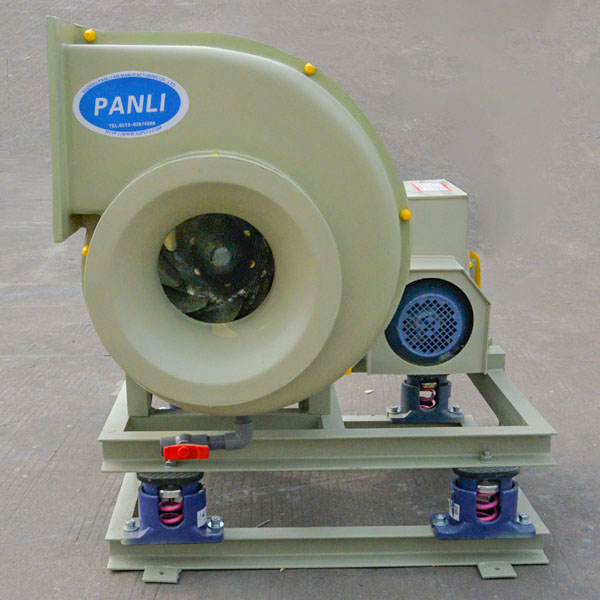

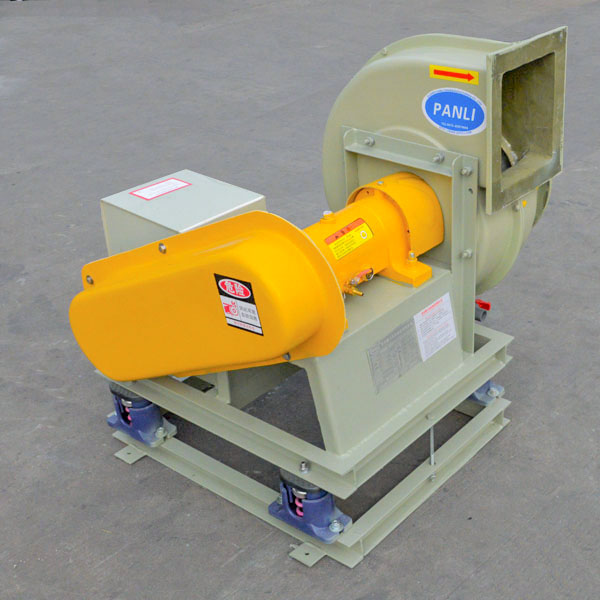

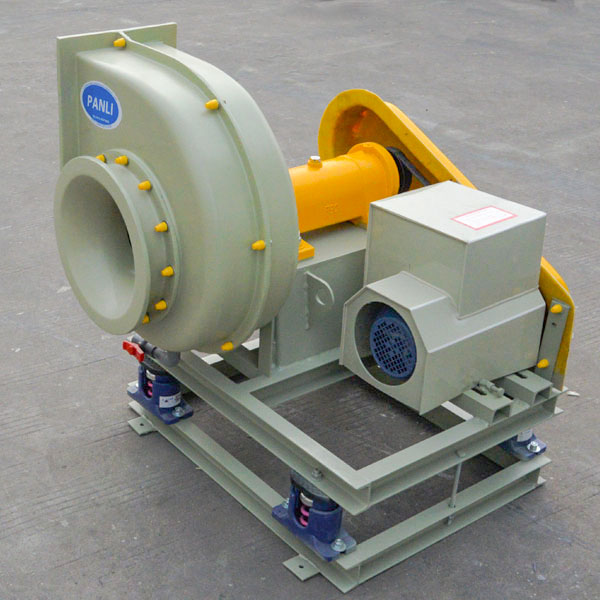

Chemical Glass Fiber Reinforced Plastic Fan

Fan model: FB400C
Transmission mode: belt drive
Fan air volume: 3855~6500CMH
Fan pressure: 1513~855 Pa
Rotor balance: ≤ 2.5mm /s
Unit vibration: ≤ 4.5mm /s
Operating temperature: ≤ 80℃
Fan speed: 2380 rpm
Motor power: 3KW
Air duct diameter: DN300~DN450 mm [Recommended main duct DN400]

Product Introduction

01 Materials and processes

Chemical field special fiberglass fan, the use of vinylester grade fiberglass resin, anti-corrosion acid and alkali resistance, five-axis engraving machine process, FRP impeller integrated production, different gas specified special treatment, with petal packing shaft seal, is a gas leak proof centrifugal fan.

02 Qualification Strength

The company has passed ISO9001 quality certification, fan AMCA certification, China energy-saving product certification, China energy efficiency label certification, EU CE certification and other certificates + more than 30 patent certifications, with a complete scientific research and quality management system, high-quality R & D team, support for category specifications customization.

03 Security Services

Provide source factory direct sales, quick response within 1 hour, on-site maintenance within 24 to 72 hours, 1-to-1 customized services, provide free design solutions, and tracking services, promise a one-year warranty, and still do effective protection of equipment after the period, national logistics distribution, timely consultation.
