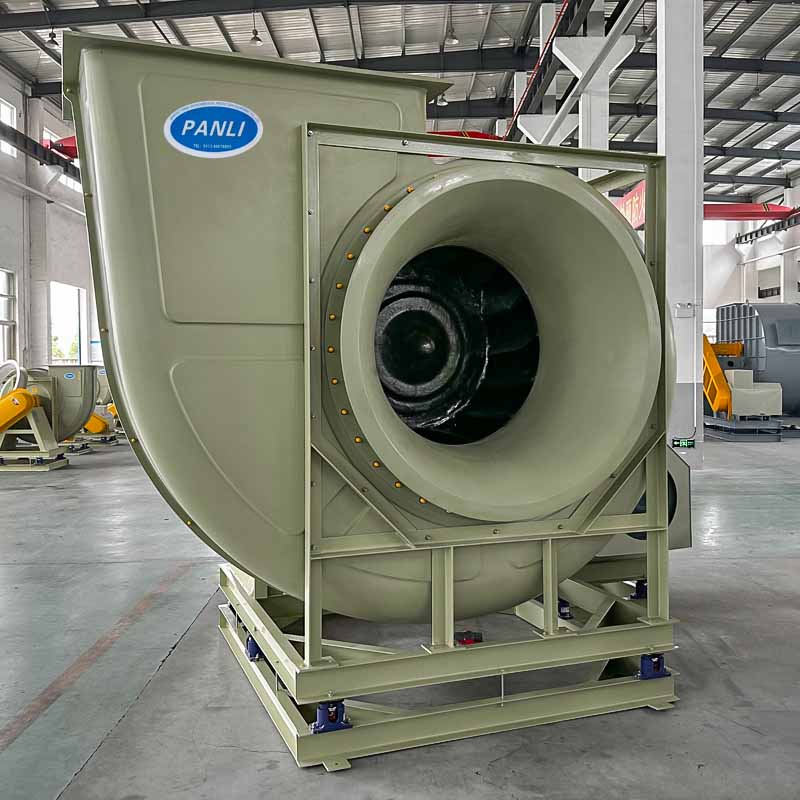

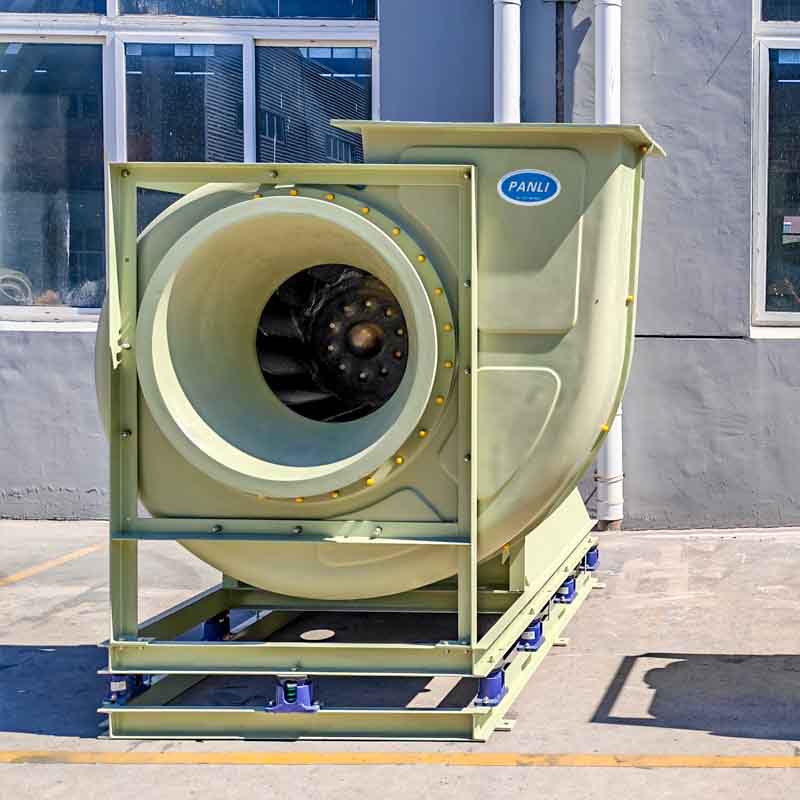

Corrosion Resistant Fiberglass Fan
Corrosion Resistant Fiberglass Fan
- Fan model:GFB960C
- Fan air volume: 24000~40000CMH
- Fan pressure: 2200~3600Pa
- Fan efficiency: ≥ 84%
- Balance level: ≤ 2.5mm /s
- Operating temperature: ≤ 80℃
- Fan speed: 1380rpm
- Motor power: 37KW
- Duct diameter: DN1000±10%
- Fan material: pure glass steel (FRP)
Video PDF
Product Introduction
The computer capacity strain analysis of the whole unit of the corrosion-resistant FRP fan was carried out to improve the structural strength, and the dynamic balance of the impeller met the 2.5mm/s grade of JB/T 9101-1999 specification, and the vibration value of the unit also met the 4.5mm/s grade requirements of JB/T 8689-1998 specification after the fan was assembled. Significantly reduce the risk of rupture due to vibration, giving you a safer working environment.
