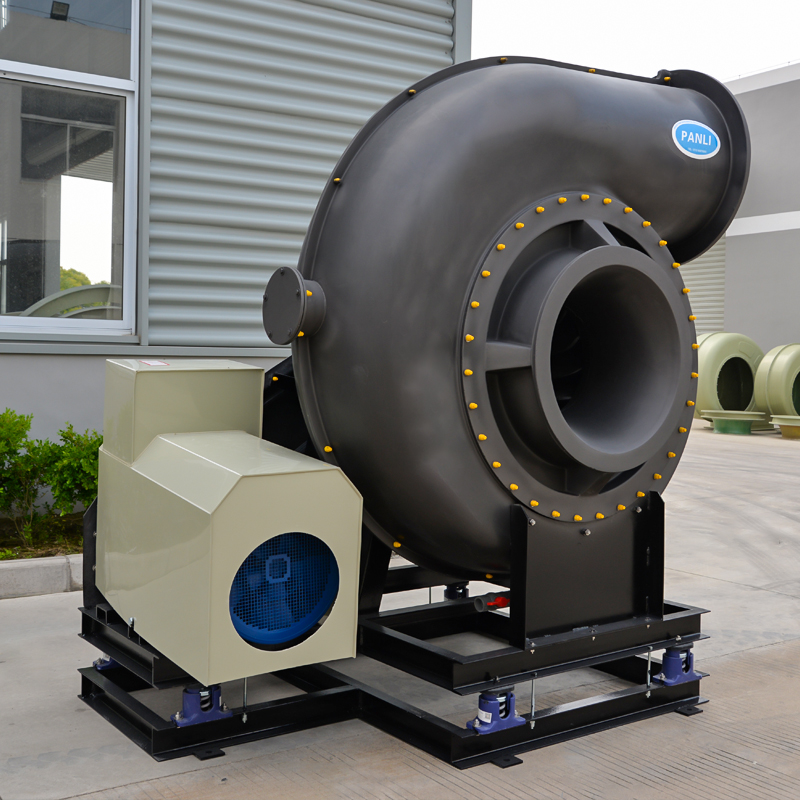

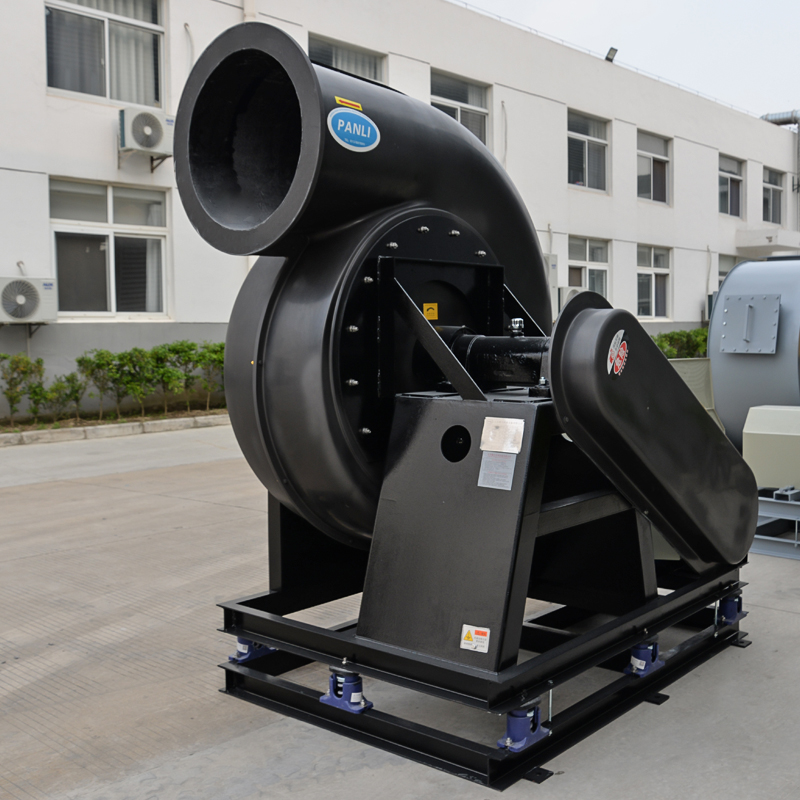

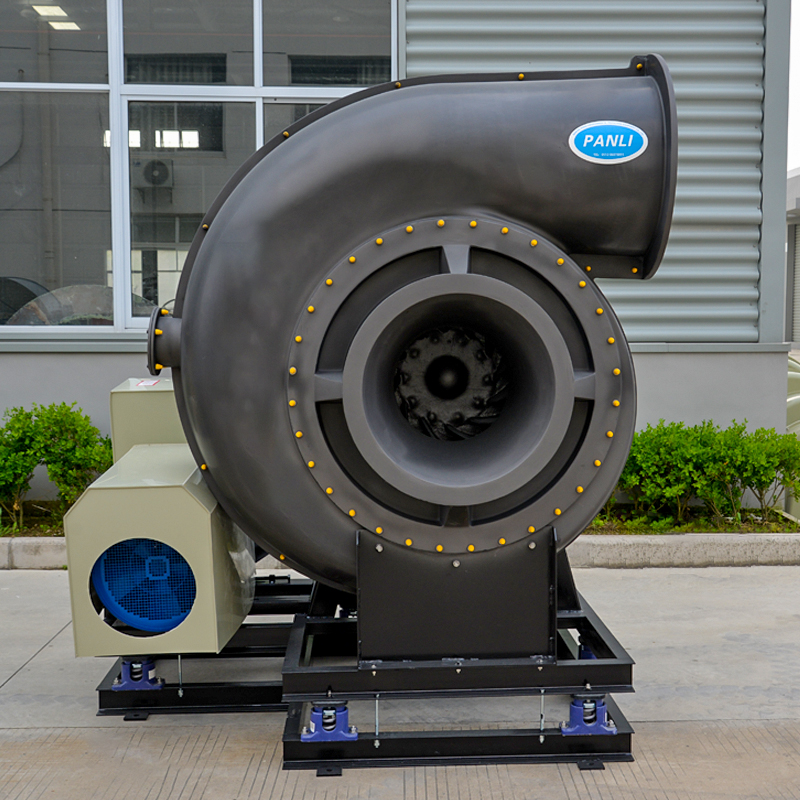

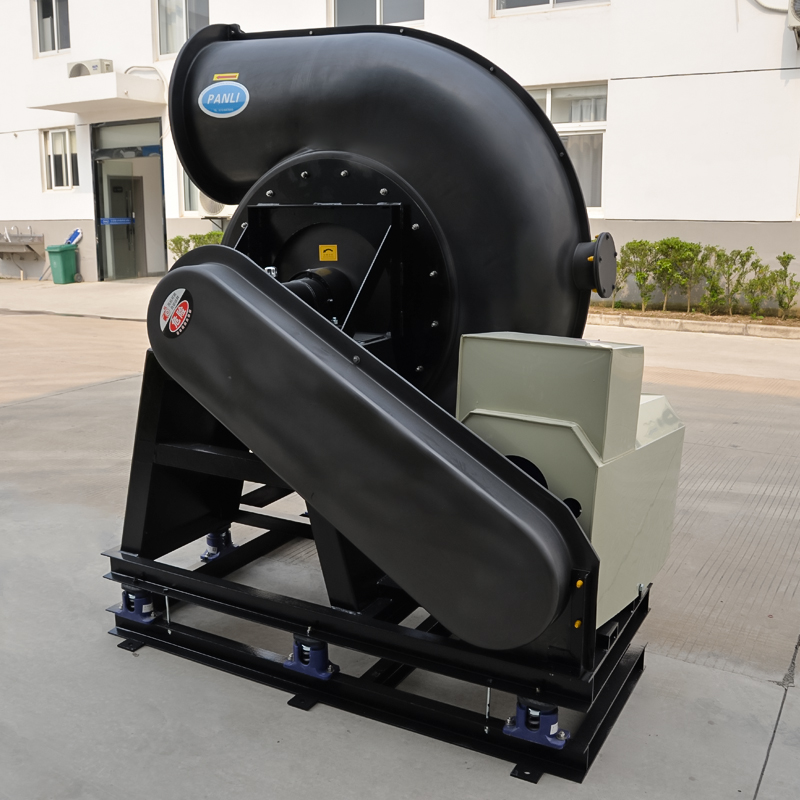

Explosion-Proof Fiberglass High Pressure Fan

Fan model: BFB1400C
Fan direction: reverse left rotation 180°
Fan air volume: 45032~55219 CMH
Fan pressure: 5543~4229 Pa
Operating temperature: ≤80℃
Fan efficiency: ≥83%
Vibration value: ≦2.5mm/s
Fan speed: 1100rpm
Motor power: 110KW
Air duct diameter: DN900~DN1000M [It is recommended that the fan mouth be equipped with shock-proof connector device]

Product Introduction

01 CNEX national explosion-proof certification

The fan conforms to the "GB3836.2-2010" national standard, the fan equipment runs continuously for 24 hours, the service life is long, energy efficient and power saving, and the whole unit carries out computer stress and strain analysis to improve the explosion-proof structure and strength of the fan.

02 Explosion-proof fan part description

The fan body is made of carbon fiber material explosion-proof, oil bath closed fuel tank, spray electrostatic paint, reduce the explosion frequency, large-scale production, the same specifications, easy to replace the operation, can be in the fastest time, with the least cost, complete the fan replacement.

03 Provide excellent service

Cooperate with users to maintain fans, provide product testing performance, vibration, and test reports to ensure that explosion-proof fans operate in the best condition; It can be tailored to customers' special specifications, directions and other requirements to ensure that the fan is safe to use and easy to install.

Applicable Scenarios

Explosion-proof fiberglass high-pressure fan is mainly used in inflammable and explosive gas, anti-corrosion, long-term use, containing acid and alkali components and chemical components of corrosive gas places. Explosion-proof fiberglass fan is currently used more, for flammable and explosive gas conditions, efficient energy saving. Explosion-proof glass fiber reinforced plastic high pressure fan manufacturer explosion-proof glass fiber reinforced plastic high pressure fan manufacturer Suzhou explosion-proof glass fiber reinforced plastic high pressure fan shell Suzhou explosion-proof glass fiber reinforced plastic high pressure fan site.

An Explosion-Proof Fiberglass High Pressure Fan is a precision-engineered ventilation device for use in hazardous, flammable, and chemically corrosive environments. It combines high static pressure performance with explosion-proof safety certification, enabling secure and efficient exhaust of explosive or toxic gases. Its applications include petrochemical plants, pharmaceutical production lines, spray paint booths, and solvent vapor extraction systems.

The fan features a fiberglass-reinforced impeller with radial or backward-curved blades, capable of generating high static pressures while maintaining smooth airflow. The volute casing is made of chemical-resistant FRP, reinforced for structural rigidity. The motor—rated explosion-proof—is mounted externally, preventing any spark source from entering the airflow path. The entire assembly is grounded and uses non-sparking stainless or aluminum alloy components for safety compliance.

The bearings and shaft housing are isolated from the gas stream and may include air-cooling or water-cooling systems for continuous operation. The aerodynamic design ensures minimal turbulence, high efficiency, and quiet operation, even under heavy load. Static pressure performance can reach up to 8,000 Pa, with air volumes from 800 to 70,000 m³/h.

This fan is widely used in flammable chemical exhaust, gas scrubbing towers, hazardous storage ventilation, and coating production. Its combination of explosion-proof electrical design, corrosion-proof FRP materials, and high-pressure capability ensures stable and safe operation in the most demanding industrial applications.
