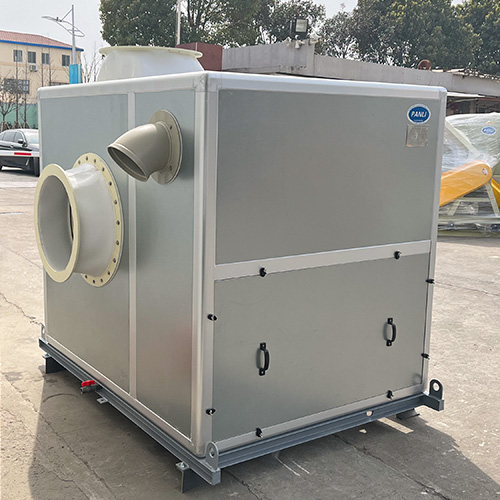

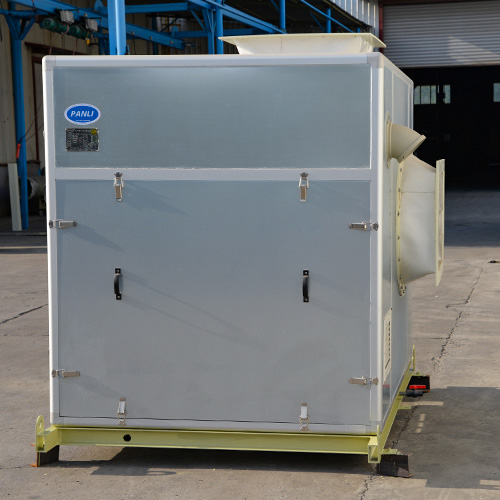

Fan Galvanized Sheet Soundproof Box
Fan Galvanized Sheet Soundproof Box
- Fan model: TPC 8.0C
- Fan air volume: 18759~30356 CMH
- Fan pressure: 2154~1599 Pa
- Fan direction: 90 degrees left rotation (F direction)
- Fan noise: ≤ 75 decibels
- Balance level: ≤ 2.5 mm/s
- Operating temperature: ≤ 80 ℃
- Fan speed: 1550rpm
- Motor power: 18.5KW
- Air duct diameter: DN700~DN900 [better effect with muffler]
Product Introduction
The soundproof box adopts a printed galvanized panel, equipped with sound insulation cotton inside, an independent cooling fan design, reserved drainage and wiring holes, easy installation, meets noise standards, equipment operates 24 hours without faults, saves energy consumption, and has low vibration. Based on actual noise measurement experience analysis, the overall sound insulation effect of the fan is improved.
The fan adopts D-type pipeline connection and PVC soft connection design at the inlet and outlet, which blocks the propagation of vibration and prevents the overall vibration of the soundproof box and pipeline from causing unnecessary losses. The oil margin bearing box lubricates the operation of the bearings, preventing friction and reducing service life. The noise value can be reduced by 5-15 decibels, which has been tested and verified.
24/7 online listening service, providing technical consultation services, fan model selection, 1-on-1 design solutions, support for customization, after-sales service: provide solutions within 1 hour, on-site processing and resolution within 24-72 hours, without delaying the production line cycle, free of manual maintenance, long-term warranty, lifelong maintenance.
Applicable scenarios
Fan galvanized sheet soundproof boxes have various applications and working conditions, and are commonly used for ventilation in large factories, electronic semiconductors, university laboratories, and other environments that require noise. Noise pollution is becoming increasingly common, especially in nearby residential areas where noise requirements are higher. The noise generated by mechanical operation is a headache for business owners. They cannot withstand complaints and feedback, resulting in significant profit losses. It is recommended to use soundproof boxes as noise reduction facilities. Currently, many noise reduction devices are used to effectively reduce the degree of noise hazards, making them more stable, quiet, and suitable for use near residential areas.
