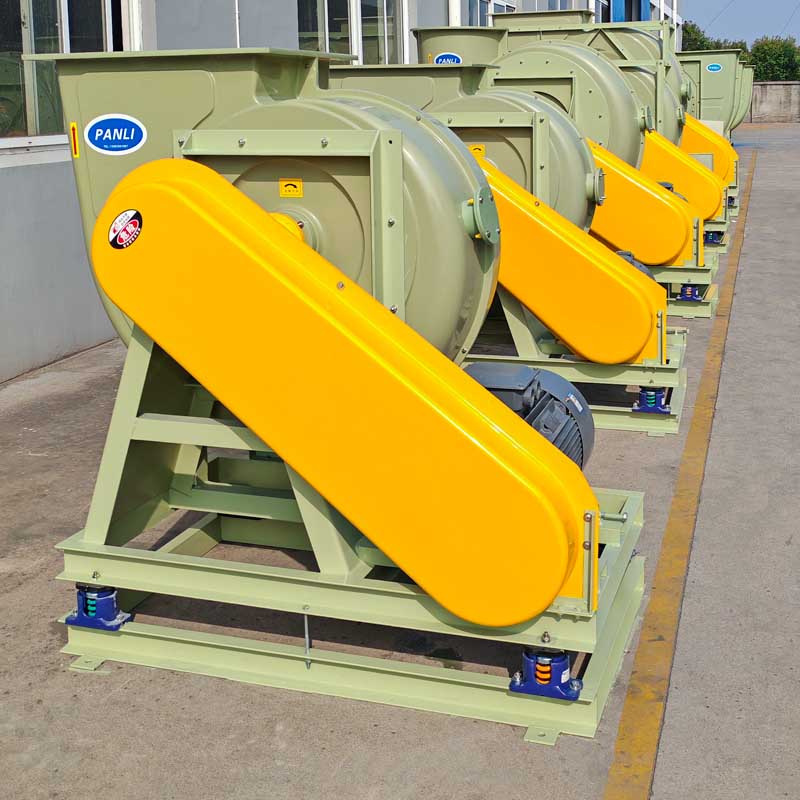

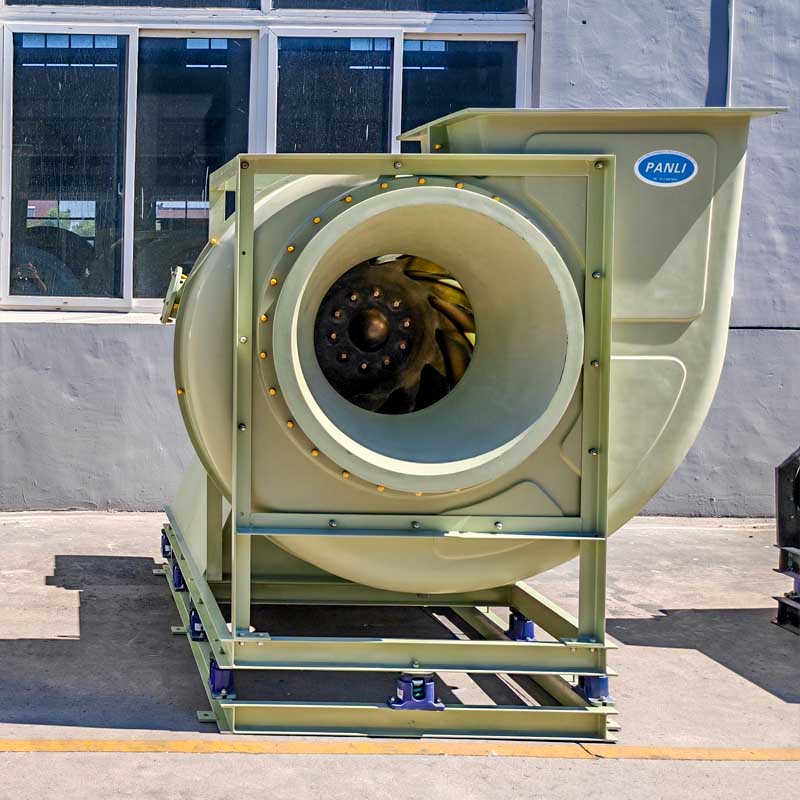

Fiberglass Acid Mist Blower

Fan model: GFB 800C
Fan air volume: 14648~31687 CMH
Fan pressure: 3146~2272 Pa
Balance level: ≤ G2.5mm /s
Operating temperature: ≤80℃
Fan efficiency: ≥84.1%
Fan speed: 1820 rpm
Motor power: 22KW
Air duct diameter: DN700~DN800 mm
Medium ingredients: hydrochloric acid, phosphoric acid, nitric acid, alanine alcohol, etc. [need to provide the actual use of ingredients]

Product Introduction

01 Materials and processes

Raw materials (Vinylestergrade) acid and alkali resistant resin, according to the corresponding medium composition to do special treatment, and the process uses three-dimensional five-axis engraving technology, mold production integrated molding, light weight, high strength, energy saving, suitable for all kinds of chemical, semiconductor and other places to use in the environment.

02 Patent Certification

Provide consulting services, on-site testing, regular inspection, one-year free insurance, lifetime warranty, national logistics door-to-door delivery.

Applicable Scenarios

Fiberglass acid mist fan is suitable for chemical emission, semiconductor process, smelting and other gas places containing fog and water vapor; The fan itself has high requirements, and has strict requirements for fog density, emission standards, and sealing. The manufacturer has developed a leak-proof sealing device for this purpose, but it is recommended to use the end position to discharge, and reduce the pressure capacity of the shell, for longer use, frequent maintenance, and save the company's costs.

Fiberglass Acid Mist Blower
