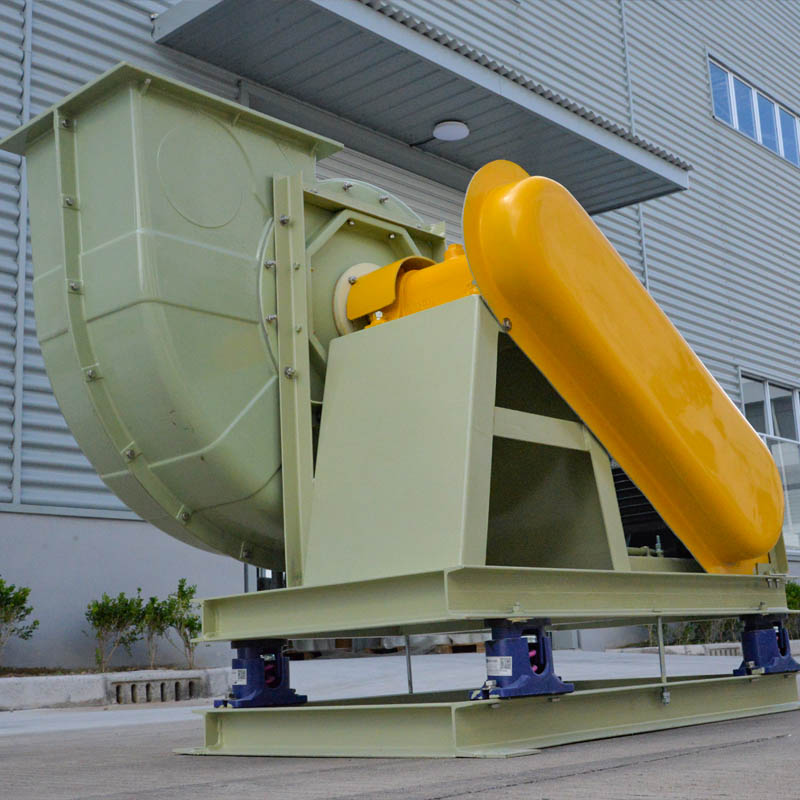

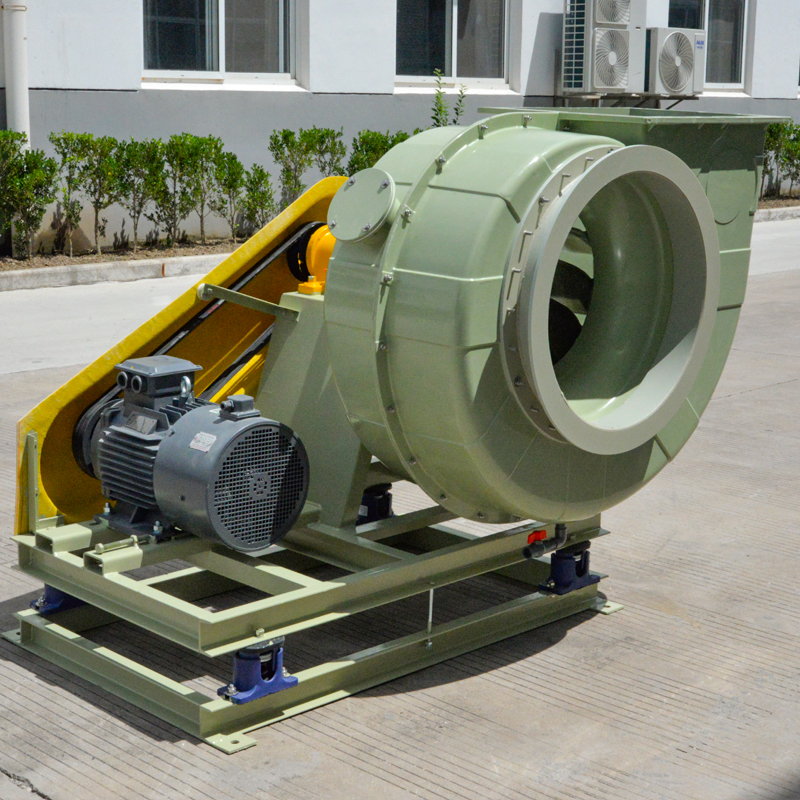

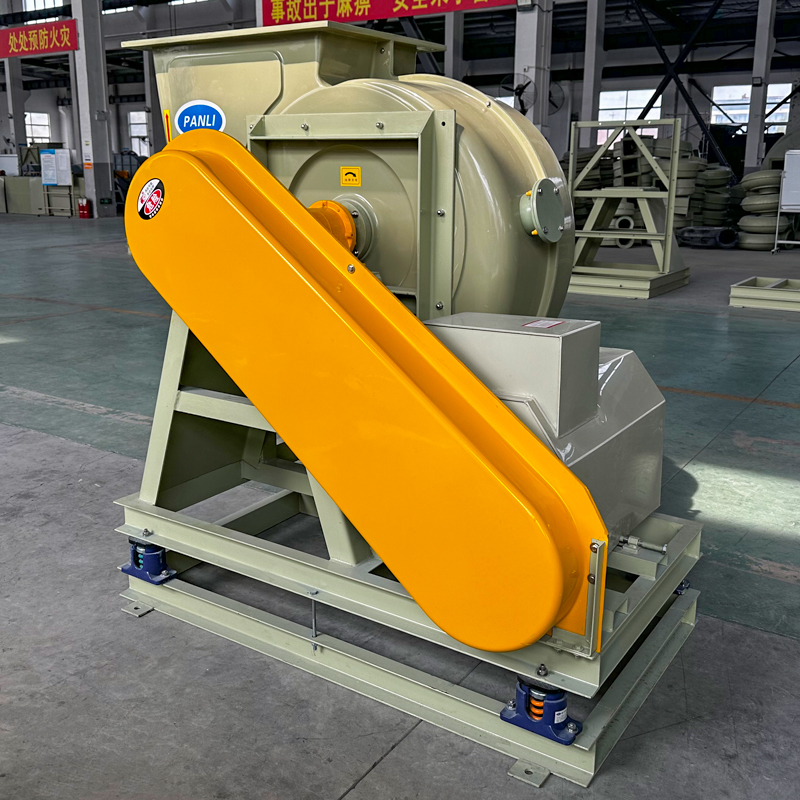

Fiberglass Deodorant Fan

Fan model: FB800C
Fan air volume: 16141~32566 CMH
Fan pressure: 2940~1689 Pa
Fan direction: right rotation 90 degrees
Operating temperature: ≤ 80℃
Rotor balance: ≤ 2.5mm /s
Fan speed: 1710rpm
Motor power: 30KW
Air duct diameter: DN700~DN900
Fan material: Vinyl ester resin (FRP)

Product Introduction

01 Materials and processes

Deodorizing fan is pure fiberglass resin mold production, integrated molding, reinforcement process, high-strength design, impeller five-axis engraving process, explosion-proof and anti-cracking, fan using OIL bath bearing, rolling bearings to reduce operating failures, special treatment of odors at room temperature, support tailor-made, applicable to municipal garbage station deodorization, sewage plant deodorization, biological deodorization, and other environments.

02 Enterprise Qualification

Brand manufacturers more than ten years of centrifugal fan manufacturing experience, 30,000 square meters of manufacturers, physical industry with supply, annual output of 10,000 fan equipment, holding the United States AMCA fan testing certification, China energy-saving product certification, China energy efficiency label certification, the European Union CE certification and other certificates, a number of inventions and patent certification, belongs to the technology research and development breakthrough company.

03 After-sales and service

24-hour consulting service online, offer within 1 hour, support fan tailor-made, one-to-one sales technical service, complete product specifications, remote or current factory guidance installation service, support on-site repair and maintenance, regular tracking inspection, commitment to a purchase, lifelong maintenance, 60000 hours trouble-free operation, brand manufacturer service is guaranteed.

The Fiberglass Deodorant Fan is specifically developed for odor control and air purification systems, combining corrosion resistance, high efficiency, and chemical stability. Constructed from fiberglass-reinforced plastic (FRP), this fan is designed to handle gases containing H₂S, ammonia, VOCs, and organic vapors — commonly found in sewage treatment plants, composting facilities, chemical waste storage, and deodorization scrubbers.

The centrifugal impeller and volute casing are precision-molded from FRP composite materials with vinyl ester or bisphenol-A epoxy resins, selected based on chemical compatibility. The smooth, nonporous internal surface minimizes gas adsorption and facilitates easy cleaning. The fan’s backward-curved impeller design ensures high static pressure with low energy consumption, supporting stable operation even under fluctuating system loads.

A key design feature is the odor-sealing and leak-proof structure, with all joints sealed using chemical-resistant gaskets to prevent odor leakage. Bearings are isolated from the gas stream and mounted externally, while the shaft is made from 304 or 316L stainless steel for corrosion resistance. The drive motor can be equipped with a variable-frequency controller for airflow adjustment, enhancing system efficiency.

Typical airflow capacities range from 800 to 80,000 m³/h, with pressures between 400 and 4,500 Pa. The fan operates quietly and efficiently, ensuring a comfortable working environment. Its long service life, minimal maintenance, and resistance to corrosive and odorous gases make the Fiberglass Deodorant Fan a critical component in environmental deodorization systems and odor control ventilation projects worldwide.
