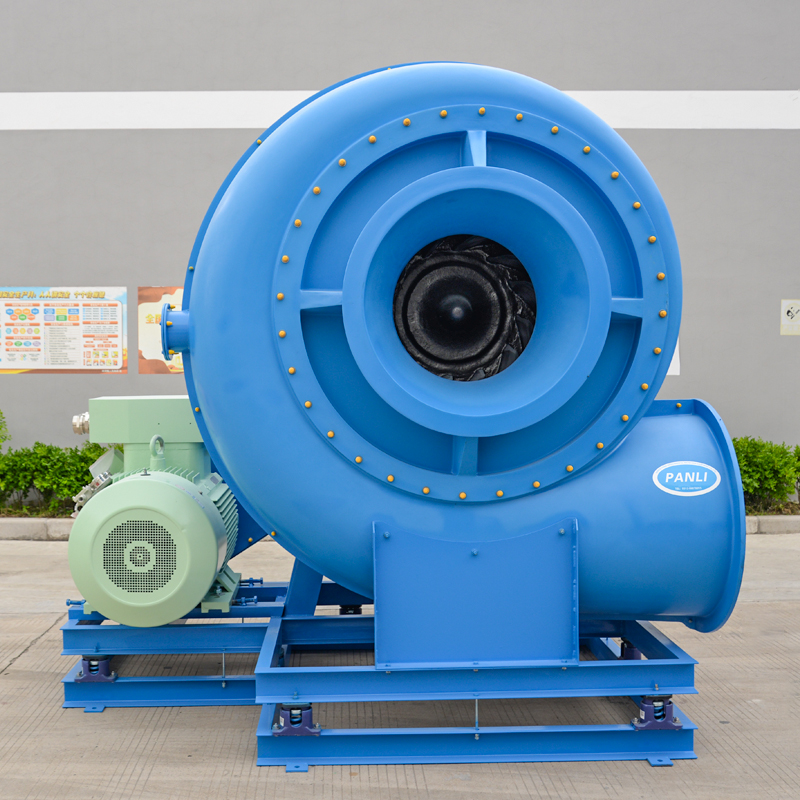

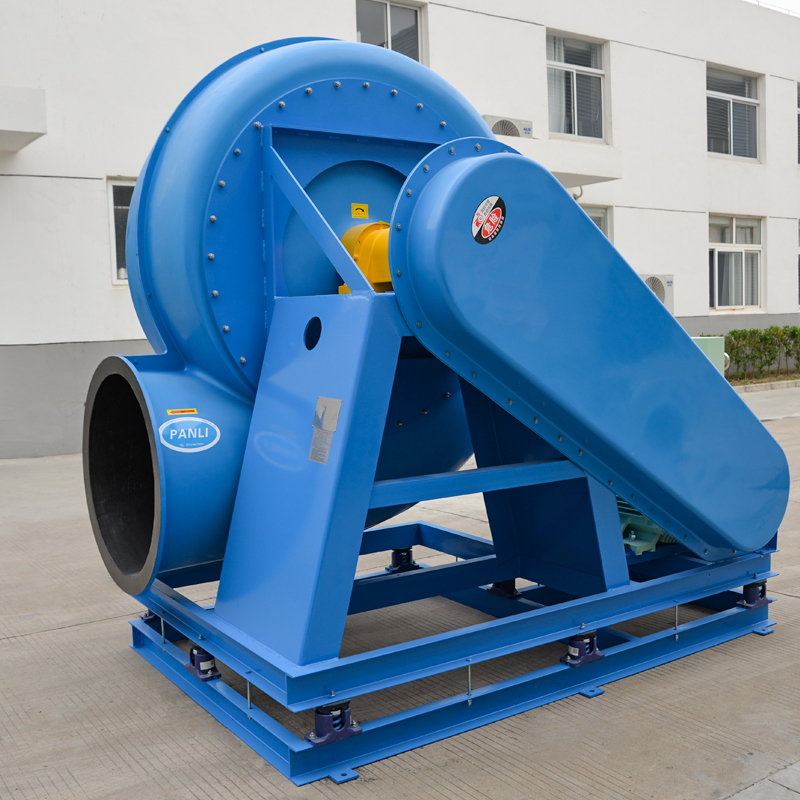

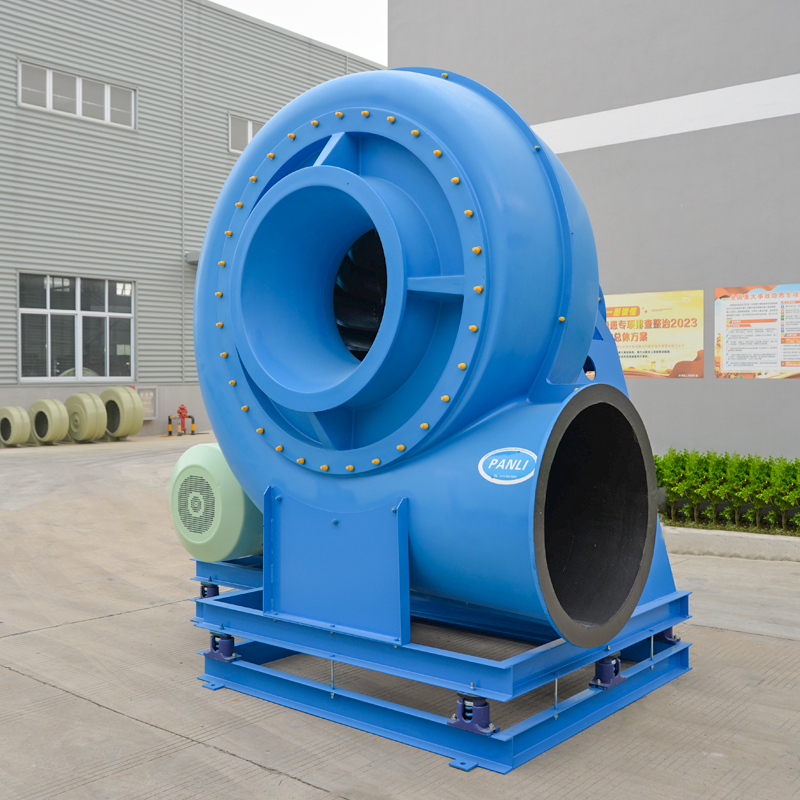

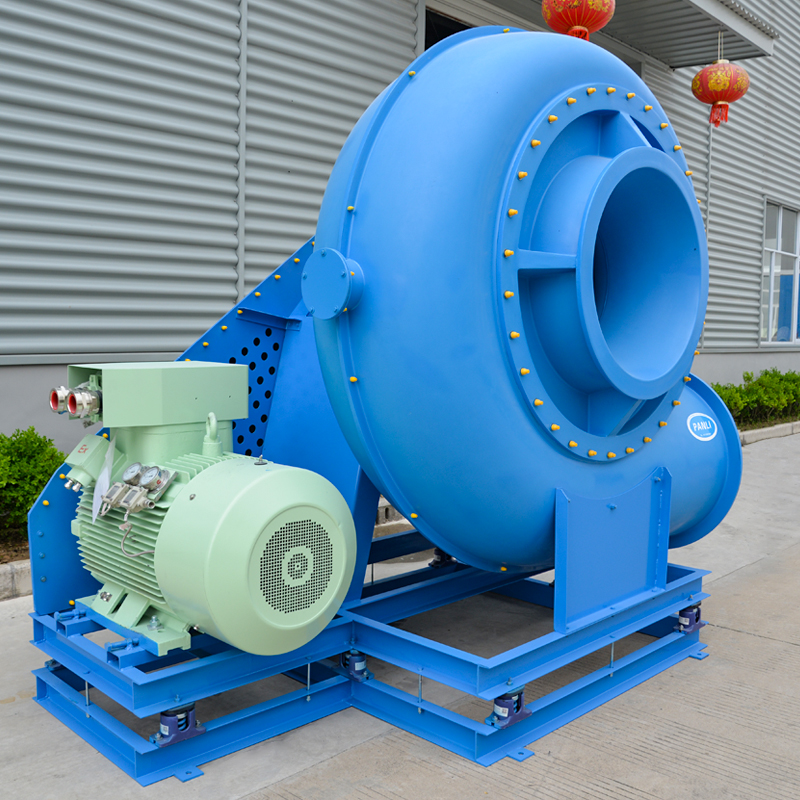

Fiberglass High Pressure Anti-Corrosion Fan

Fan model: YHFB 1120C
Fan air volume: 28343~33153 CMH
Fan pressure: 5520~4223 Pa
Rotor balance: ≤ 2.5mm /s
Unit vibration: ≤ 6.3mm /s
Operating temperature: ≤80℃
Fan efficiency: ≥78.3%
Fan speed: 1480 rpm
Motor power: 75KW
Air duct diameter: DN700~DN800 mm [resistance 7Kpa can be designed]

Product Introduction

01FRP Raw materials

Glass fiber reinforced plastic high-pressure anti-corrosion fan raw materials made of vinylester resin, all glass fiber reinforced plastic resin, according to the combination of chemical molecular elements, used in actual conditions, acid and alkaline exhaust emission treatment, 60000 hours of trouse-free operation, the use of three-phase frequency conversion speed control motor, five-axis engraving process light and high strength.

02 Qualification Certification

The high pressure fan shaft side end needs a leakproof device, sealing methods include: FRP packing seal, mechanical, carbon ring, nitrogen, graphite, labyrinth, return air and other sealing devices, research and development of "petal seal" gas leakproof device, with practical patent qualification recognition, test report details.

03 After-sales maintenance

Manufacturer service, analysis and troubleshooting within 2 hours, 48~ survey inspection, lifelong warranty, logistics door-to-door, timely service, worry-free use.
