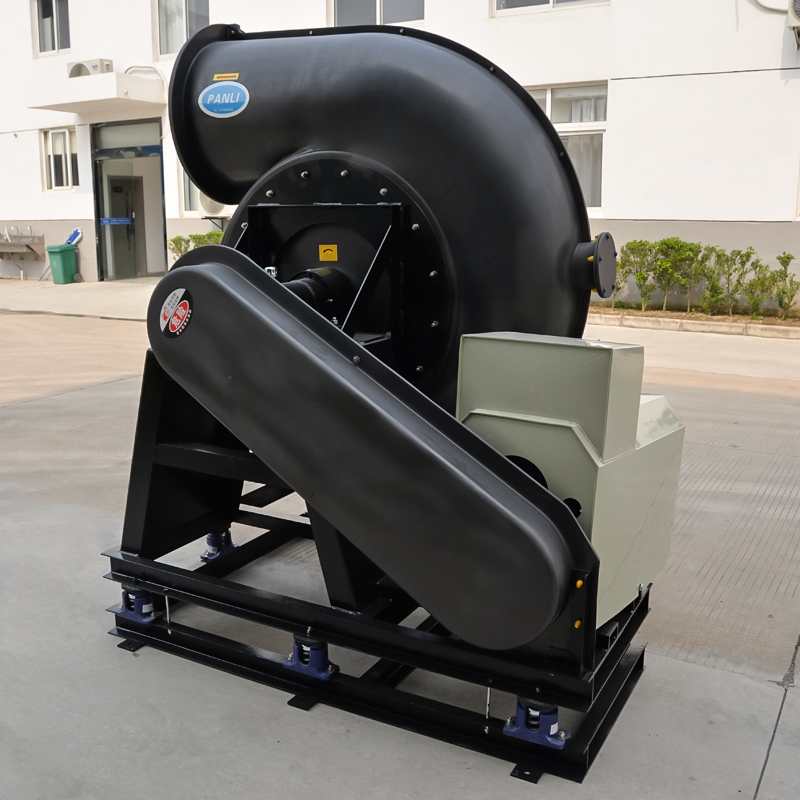

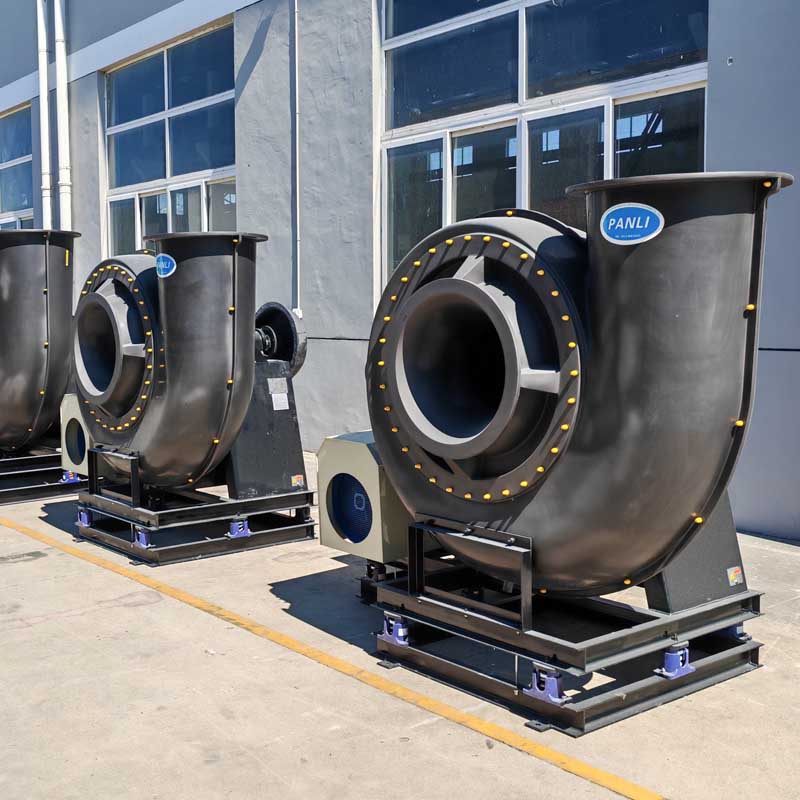

Fiberglass High Pressure Centrifugal Fan

Fan model: YHFB 1120C
Fan air volume: 20000 CMH
Fan pressure: 6000 Pa
Sealing device: carbon ring seal SUS 304
Transmission mode: Belt drive
Operating temperature: ≤80℃
Fan efficiency: ≥81.2%
Fan speed: 1570rpm
Motor power: 75KW
Air duct diameter: DN700~DN800 M [Recommended shock absorber joint]

Product Introduction

01 Maintenance operation is simple

Provide fan safety manual and maintenance knowledge manual, fan equipment continuous 24 hours trouble-free operation, durable use, energy saving, reduce costs, the whole unit for computer testing stress analysis, monitoring equipment operation status.

02 High seal rotor

The OIL bath enclosed oil tank protects the bearing and shaft core from corrosive gas. The shaft end adopts stainless steel carbon ring sealing device. Nitrogen and carbon ring cooperate with each other during operation to discharge the gas under pressure and protect the normal use of shaft core.

03 Provide after-sales service

Regular equipment operation survey and inspection, to solve professional technical problems, promise one year warranty, lifelong maintenance, regular customer satisfaction survey, according to the user's special specifications, tailored design, to ensure the normal operation of the fan.
