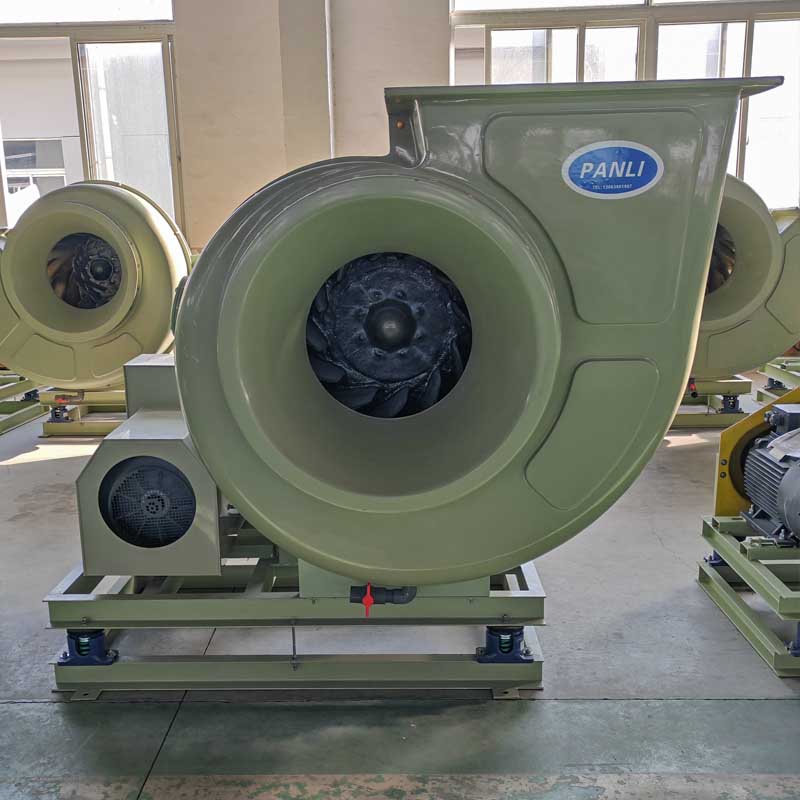

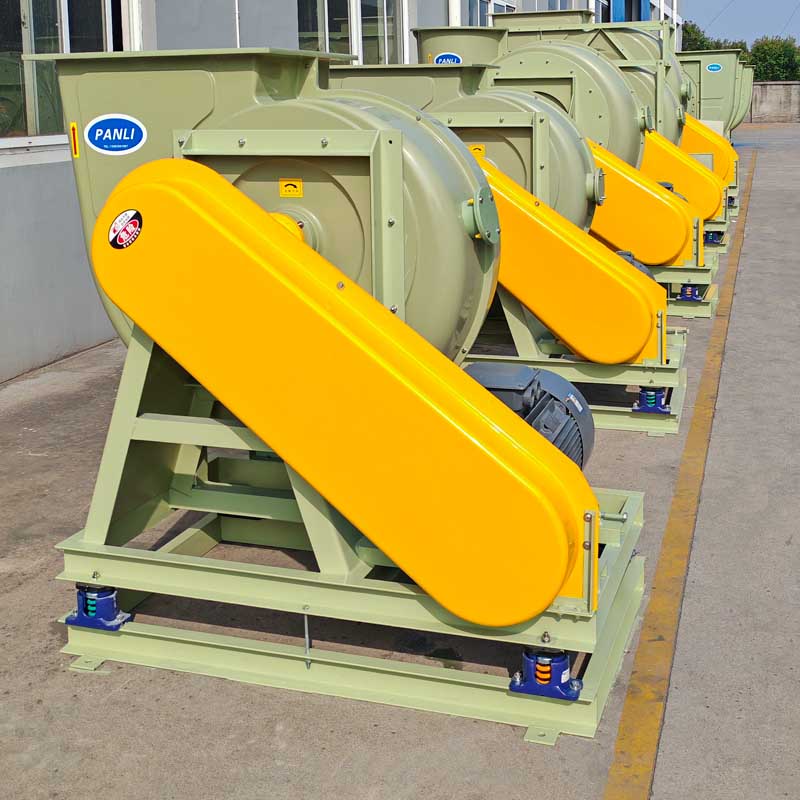

Fiberglass Induced Draft Fan

Fan model: FB960C
Fan air volume: 29162~42811 CMH
Fan pressure: 2844~1651 Pa
Fan direction: left rotation 90 degrees -F direction
Balance level: ≤ 2.5mm /s
Fan efficiency: ≥ 84%
Operating temperature: ≤ 80℃
Fan speed: 1300rpm
Motor power: 37KW
Duct diameter: DN900 [Recommended ±10%]

Product Introduction

01 Material Technology

Fiberglass fan material selection vinyl ester resin, pure fiberglass material, unlined metal material, shell mold molding production, speed test verification of high strength, impeller five-axis engraving process, rotor balance accuracy, anti-burst test detection, long service cycle, stable performance.

02 Company Development

30000 square meters production base, annual output of 10,000 sets, fan quality strict control, humanized traceability management, the company through the fan AMCA testing and certification, brand urgent order within 2 days of rapid delivery, 24 hours of online consulting services, 1V1 engineers tailored within 72 hours of quality assurance, for users to solve various problems, after-sales protection.
