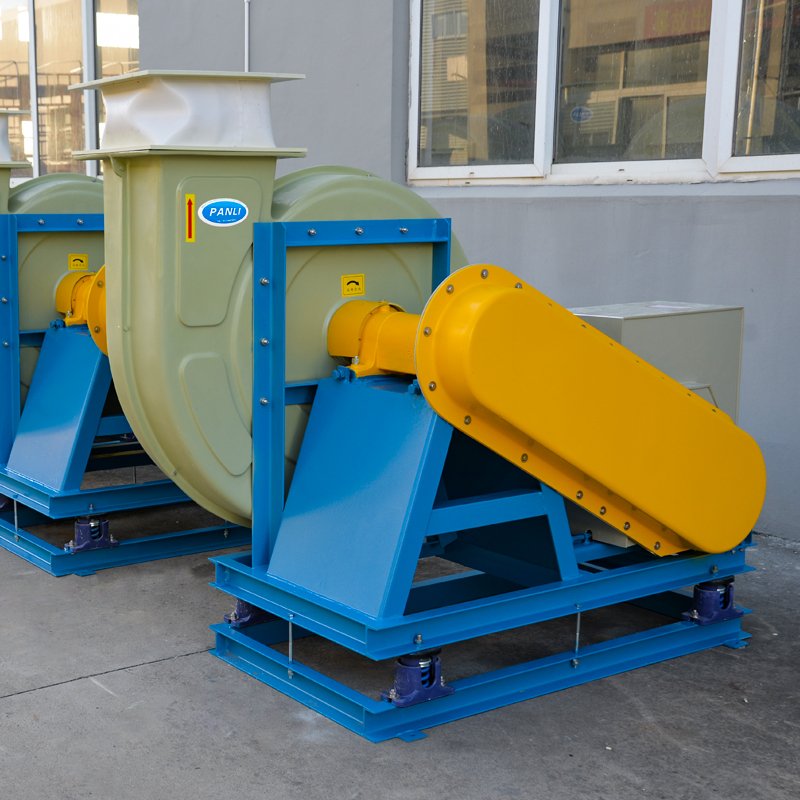

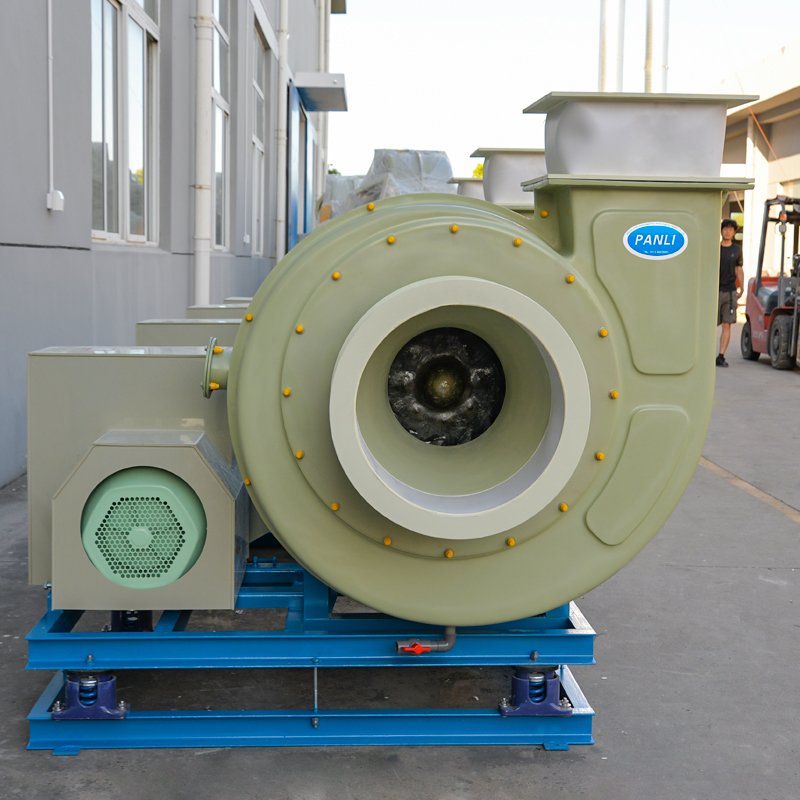

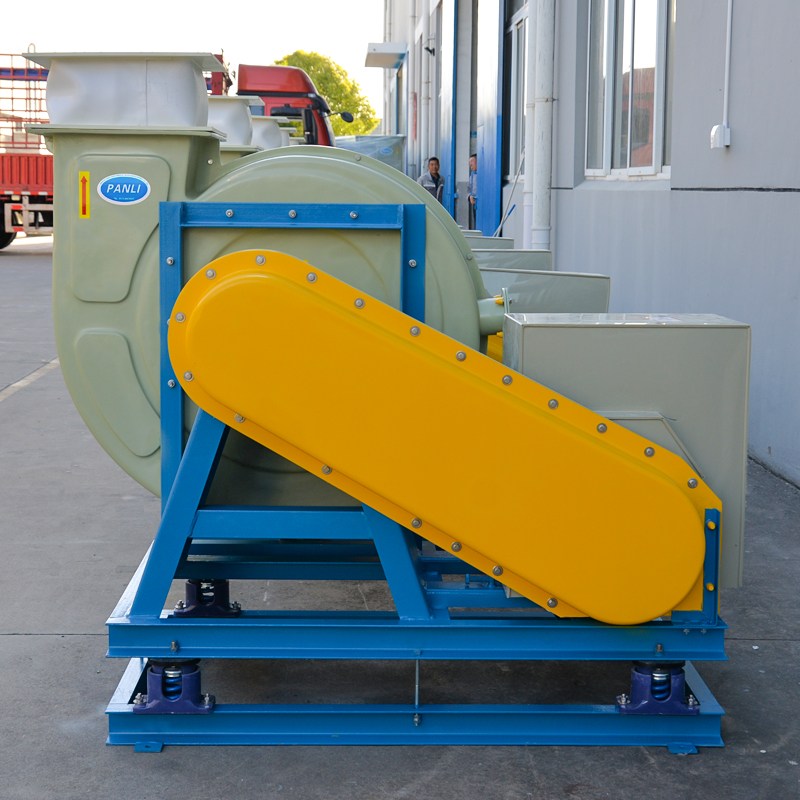

High Pressure Centrifugal Fiberglass Fan

Fan model: HFB710C
Fan air volume: 8697~17812CMH
Fan pressure: 4040~3320 Pa
Balance level: ≤ 2.5mm /s
Fan efficiency: ≥ 84%
Operating temperature: ≤ 80℃
Fan speed: 1830rpm
Motor power: 30KW
Air duct diameter: DN400*500

Product Introduction

01 Material Technology

High pressure centrifugal fiberglass fan adopts petal packing shaft seal, good sealing performance, special gas leakage prevention, can be used in factories, laboratories and other special occasions, the shell and impeller are made of fiberglass material, integrated mold molding, manual reinforcement process, corrosion and acid prevention, strict control of equipment operating efficiency.

02 Company Development

With substantial patent "a centrifugal fan exhaust gas collection device", China energy-saving product certification, China energy efficiency label certification, guarantee.

03 After-sales Service

If the equipment fails in operation, timely contact, customer service 24 hours online service, 72 hours to the site maintenance, Panli fan regularly do equipment operation status investigation and inspection, professional technology to solve all kinds of problems encountered by customers, national logistics delivery, quality assurance.
