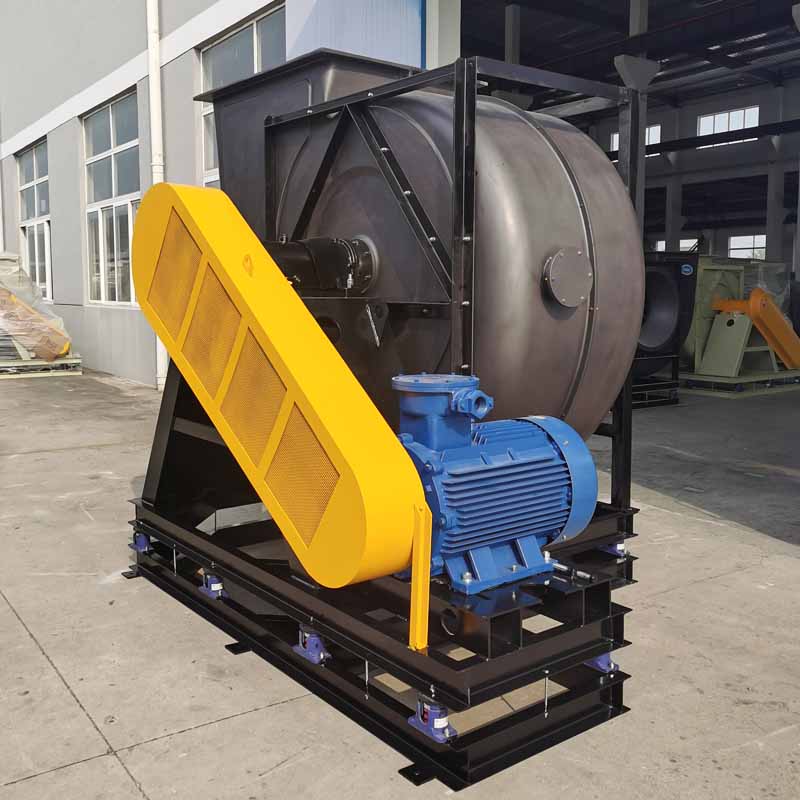

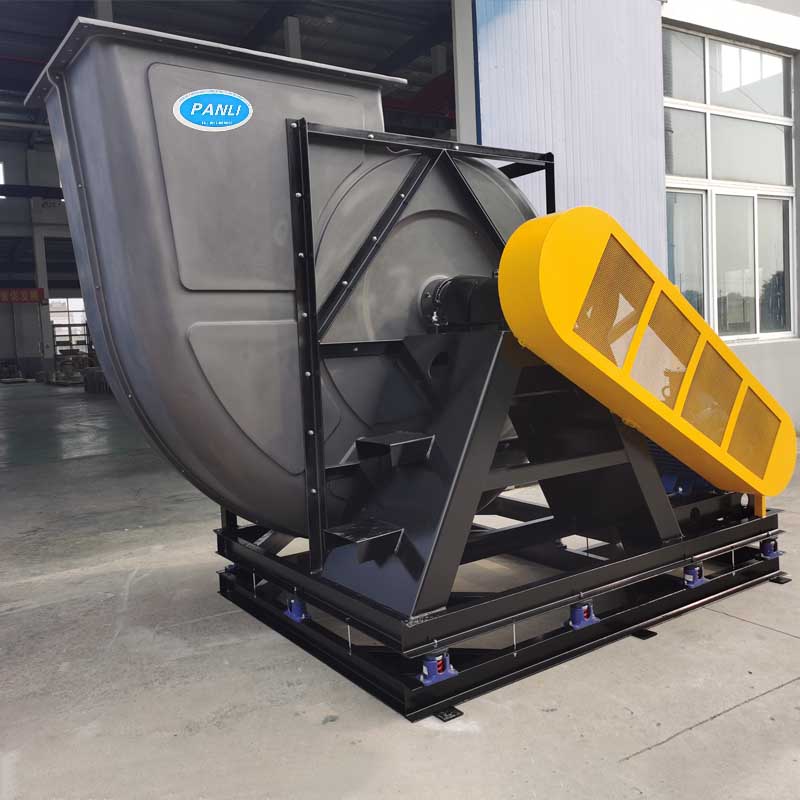

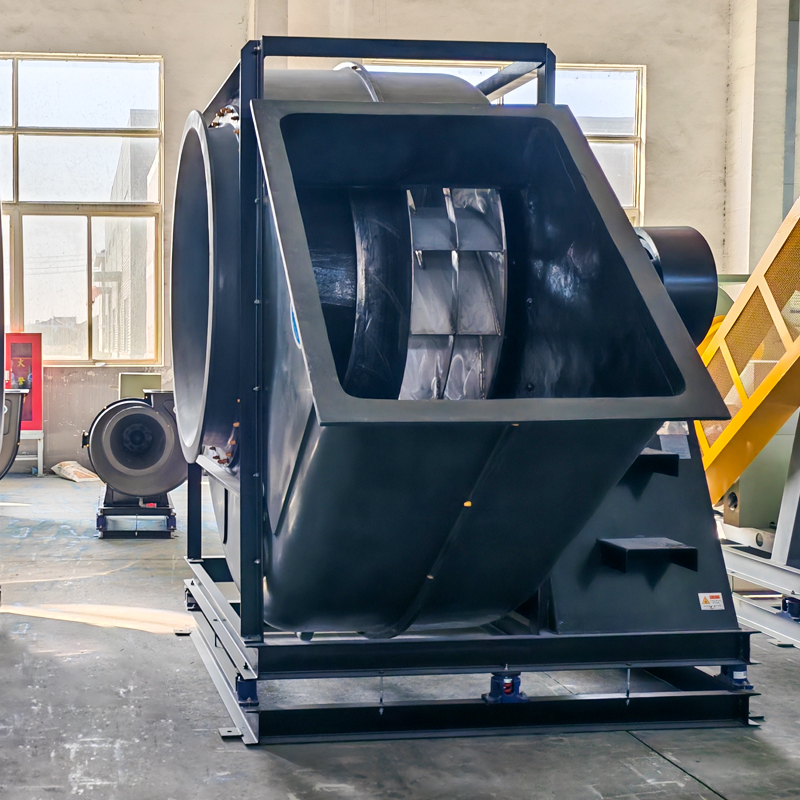

High Pressure Explosion-Proof Fiberglass Fan

Fan model: HFB 630C
Fan air volume: 7104~14549 CMH
Fan pressure: 4241~3285 Pa
Balance level: ≤ G2.5mm /s
Operating temperature: ≤80℃
Fan efficiency: ≥73.4%
Fan speed: 2100 rpm
Motor power: 22KW
Air duct diameter: DN400~DN500 mm
Fan color: black [machine explosion-proof configuration]

Product Introduction

01 Raw material control

High pressure explosion-proof fiberglass fan raw materials: according to the composition of the medium, select raw materials vinylester grade pure fiberglass resin, which need to add anti-static raw materials, electrostatic dredging, reduce exclusion, with explosion-proof frequency conversion speed regulation motor, simple and convenient operation, mold molding, new process light weight and high strength.

02 Explosion-proof certification

Meet the requirements, detection: surface resistance test in line with the "72 hours to the scene to solve, one-to-one manufacturers after-sales survey regular inspection, the national lifetime warranty, logistics door-to-door, timely service, worry-free use.

Applicable Scenarios

High pressure explosion-proof fiberglass fan is suitable for chemical plants, biogas digesters, sewage ponds, deodorization, experimental sites, underground bases and other places containing flammable and explosive; Understanding the actual working conditions for explosion-proof classification, mainly depends on technical strength and practical experience, reasonable suggestions are helpful to selection, reduce unnecessary trouble, regular maintenance can save operating costs.
