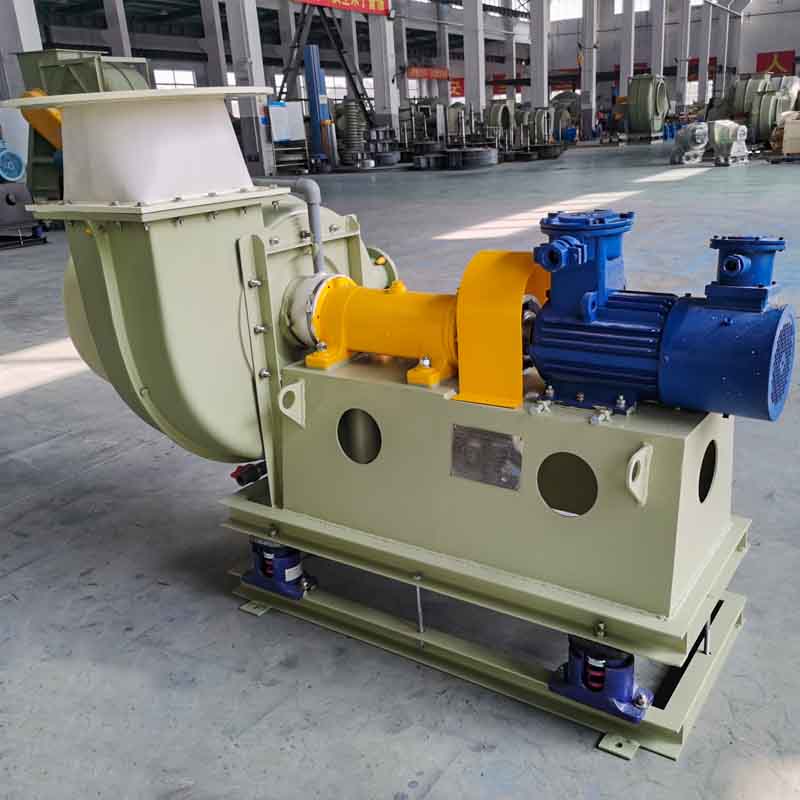

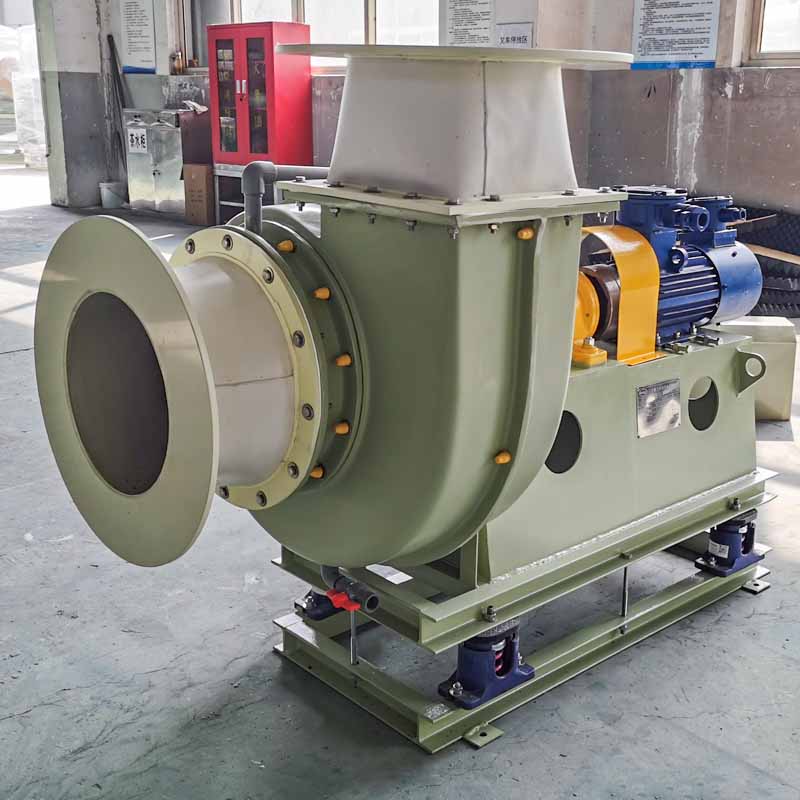

High Pressure FRP Fan

Fan model: YHFB 630D
Fan air volume: 1042~3826 CMH
Fan pressure: 4421~6219 Pa
Sealing device: carbon ring seal SUS 304
Transmission mode: Coupling type transmission D type
Operating temperature: ≤80℃
Fan efficiency: ≥81.2%
Fan speed: 2900rpm
Motor power: 15KW
Air duct diameter: DN250~DN350 M [Recommended shock absorber joint]

Product Introduction

01 Excellent high temperature resistance

The fan test meets the requirements of GB/ T13274-9 (-) fire code test standard, and does not damage in continuous operation for 24 hours under high temperature conditions.

02 High efficiency and energy saving

Using CAD, CFD and other series of analysis and development software, the fan efficiency is greater than 80%, some machine numbers are greater than 85%, and has the characteristics of flat efficiency curve, which is conducive to high efficiency and energy saving.

03 Easy installation, small footprint

It can be directly connected with the air duct and installed on the wall (installation form can be vertical or horizontal), which greatly saves the floor space. Direct motor connection mode, reliable operation.

Applicable Scenarios

High pressure FRP fan can be widely used in glass fiber process, rare earth extraction, chemical and pharmaceutical, sewage deodorization, paper making anaerobic, acid recycling and other environments containing high pressure corrosive gases.
