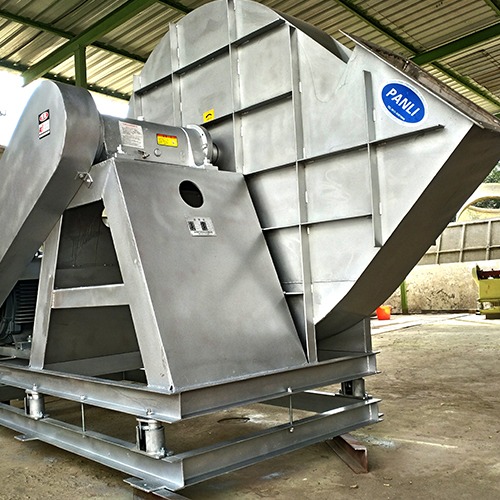

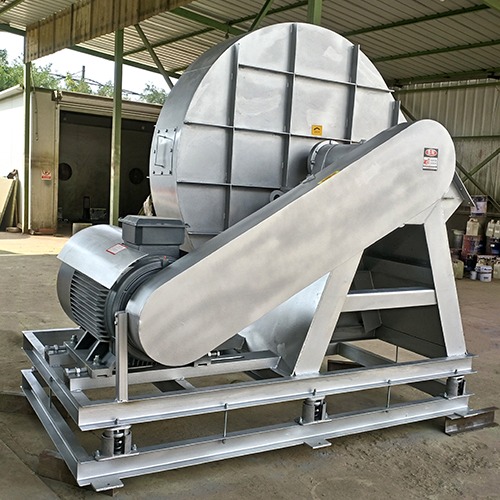

High Pressure Stainless Steel Centrifugal Fan
High Pressure Stainless Steel Centrifugal Fan
- Fan model: THPC 14C
- Fan air volume: 37655~58575 CMH
- Fan pressure: 6110~5343 Pa
- Balance level: ≤ G2.5 mm/s
- Operating temperature: ≤ 400 ℃
- Fan efficiency: ≥ 84%
- Fan speed: 1000rpm
- Motor power: 132KW
- Air duct diameter: DN800~DN1000 M
- Chimney conveying head: 15 meters [It is recommended to use a frequency conversion adjustment device]
Product Scenarios
High pressure stainless steel centrifugal fans are widely used for the extraction and exhaust of corrosive acid and alkali gases, waste gas treatment and purification, sewage deodorization, and other environments containing corrosive gases. Widely applicable, suitable for various working conditions, efficiently saving energy, promoting energy conservation, creating profits for you, reducing costs, lifelong after-sales service, and one-on-one manufacturer service.
The High-Pressure Stainless Steel Centrifugal Fan is designed for high-static-pressure air movement in corrosive and high-temperature environments. It is widely used in chemical processing, drying systems, power plants, and furnace exhaust applications where strong airflow and structural durability are essential.
Manufactured from 304 or 316 stainless steel, the fan body and impeller are resistant to oxidation, corrosion, and deformation even under high thermal and mechanical stress. The impeller design is optimized for pressure generation, featuring narrow, backward-curved blades that efficiently convert mechanical energy into static pressure.
This fan can deliver static pressures exceeding 4000 Pa, depending on model size and speed. Dynamic balancing and precision machining ensure vibration-free operation. The heavy-duty motor is mounted externally or via coupling to prevent heat transfer and facilitate maintenance.
The stainless steel volute casing is reinforced with stiffeners for high structural strength. The unit supports variable frequency drives (VFDs) for adjustable airflow and can be equipped with dampers or silencers for enhanced control. It is suitable for continuous-duty operation in harsh environments and can handle gas temperatures up to 250°C.
Combining high mechanical reliability, corrosion resistance, and superior pressure performance, the High-Pressure Stainless Steel Centrifugal Fan is a dependable solution for industrial systems requiring powerful and stable air movement under demanding operating conditions.
