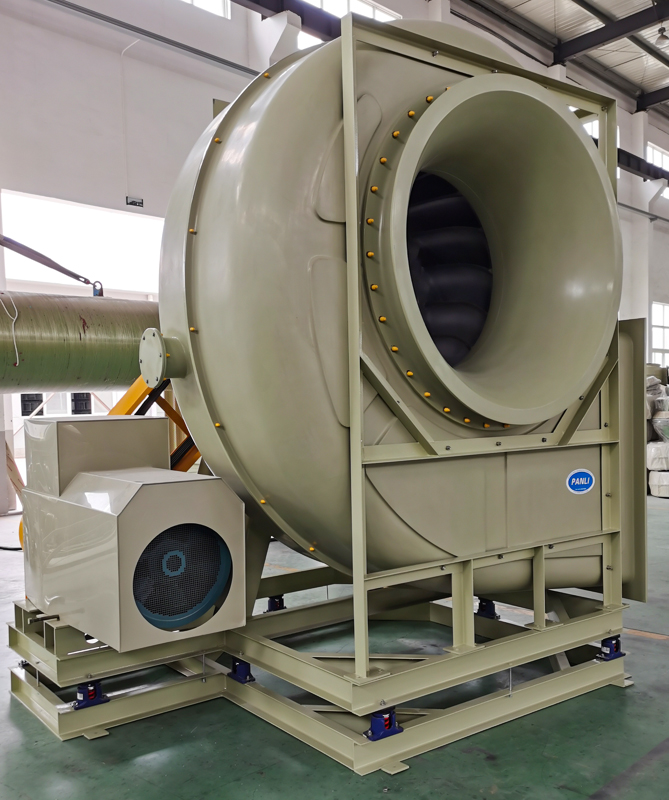

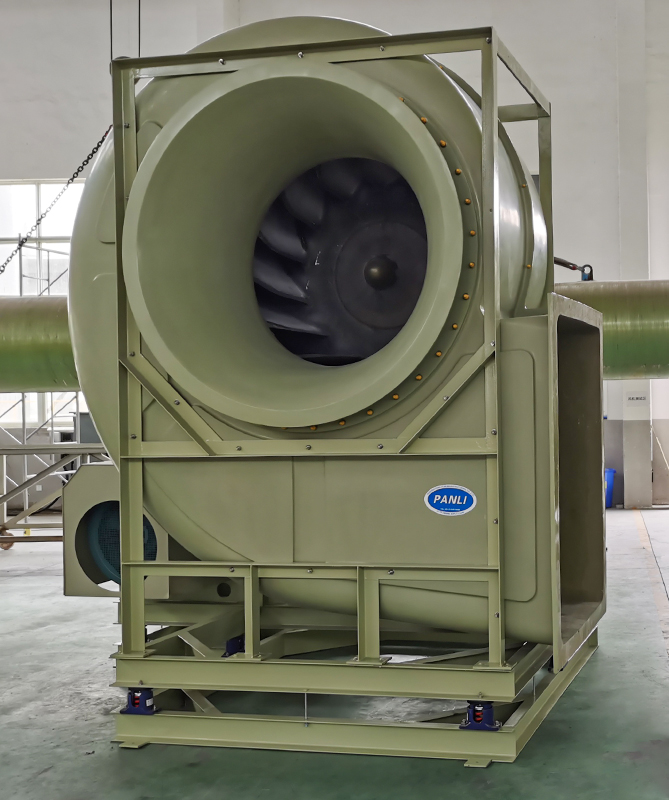

Low Noise Fiberglass Fan
Low Noise Fiberglass Fan
- Fan model: FB 1120C
- Fan air volume: 39209~59304 CMH
- Fan pressure: 3007~2117 Pa
- Balance level: ≤ G2.5mm /s
- Operating temperature: ≤80℃
- Fan efficiency: ≥84.3%
- Fan speed: 1230 rpm
- Motor power: 55KW
- Air duct diameter: DN1000~DN1200 mm
- Fan color: Sand color[Support custom]
Product Introduction
01 Technology and testing
Low noise FRP fan design to meet the "JBT 8690-1998 industrial fan noise limit" requirements, raw materials using vinylester resin, different gas components can be customized special treatment, five axis engraving new technology, one mold molding, light weight and high strength, is a kind of energy saving centrifugal fan.
02 R&D Patent
A centrifugal fan 24 hours a day online service, arrived at the scene within 72 hours to solve, timely after-sales to provide technical support to manufacturers, on-site testing, regular inspection, lifetime warranty, national logistics door-to-door, worry-free use, full tracking service.
Applicable Scenarios
Low noise fiberglass fan is suitable for sewage treatment, chemical industry, electronic semiconductor process, metal smelting and other places containing acid and alkali gas production for discharge; Low noise fiberglass fan manufacturers own requirements are relatively high, and the working condition of acid and alkali gas density and emission standards, has strict requirements, for this fiberglass fan processing manufacturers to develop anti-leakage sealing device, but the use of the position is recommended to discharge the end of the emission system, and reduce the shell pressure capacity, frequent maintenance, saving the company's operating costs.
