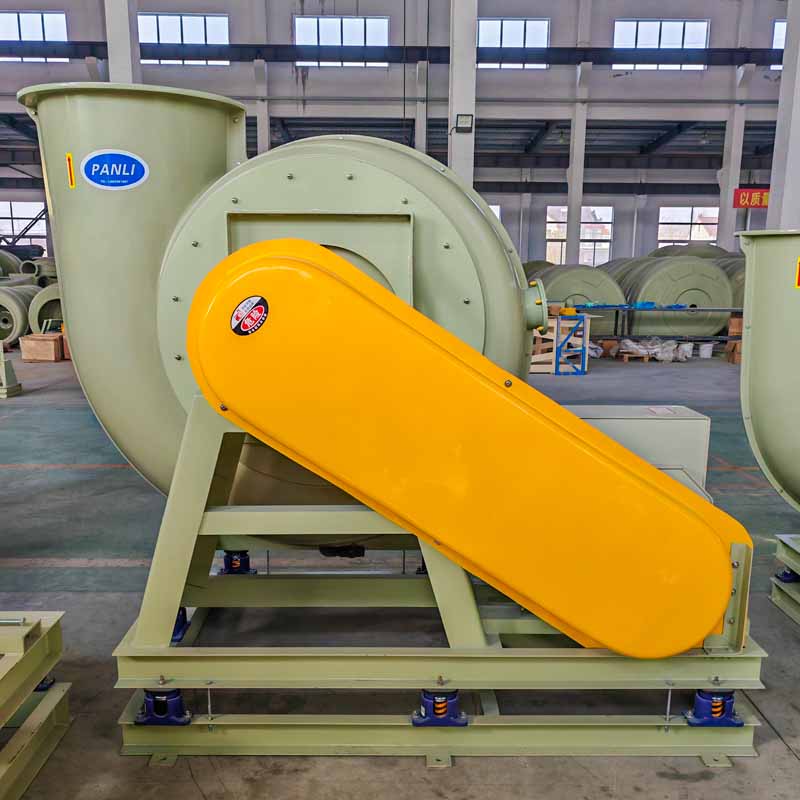

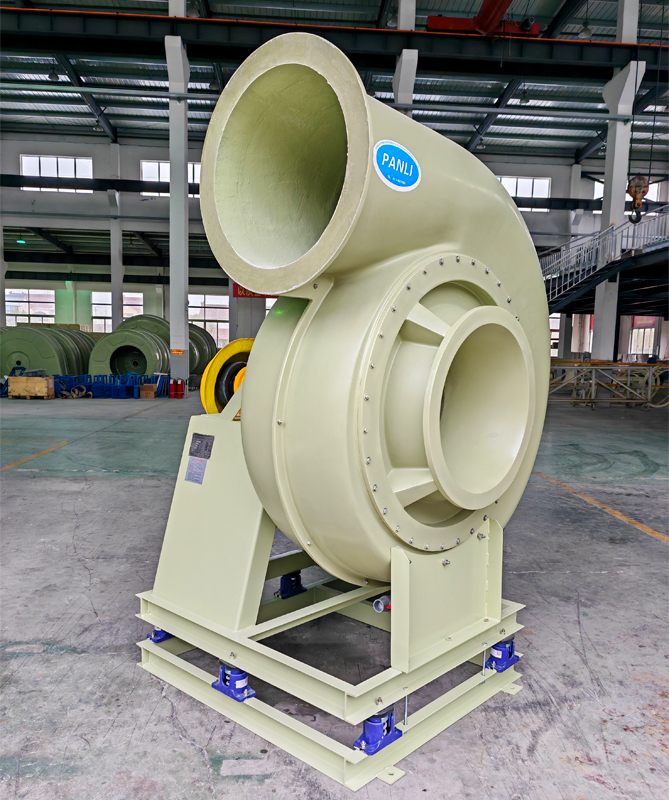

Round Mouth High Pressure FRP Fan
Round Mouth High Pressure FRP Fan
- Fan model: YHFB1300C
- Fan air volume: 30000~45000 CMH
- Fan pressure: 4000~5000Pa
- Sealing device: Belt drive
- Transmission mode: Coupling type transmission D type
- Operating temperature: ≤80℃
- Fan efficiency: ≥81.2%
- Fan speed: 1240rpm
- Motor power: 75KW
- Air duct diameter: DN800~DN900M [Recommended shock absorber joint]
Video PDF
Product Introduction
Circular high pressure FRP fans are widely used in the extraction and exhaust of corrosive acid and alkali gases, waste gas treatment and purification, sewage deodorization, and other environments containing corrosive gases; The fan outlet end face has the same cross-sectional area as the inlet end face, stable performance and easy installation.
