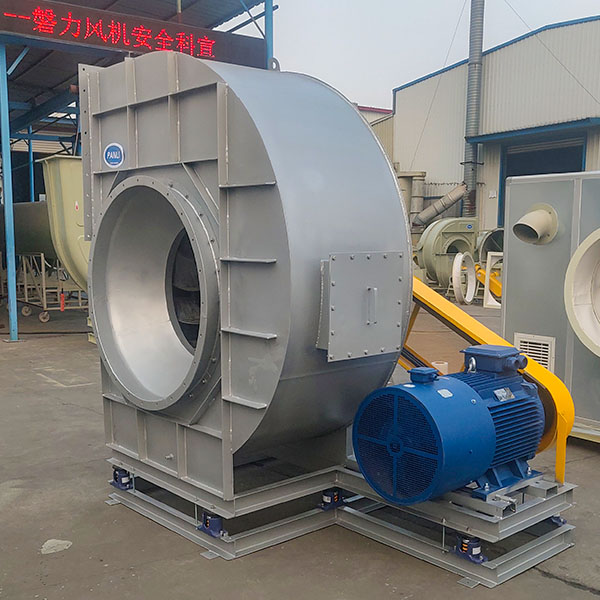

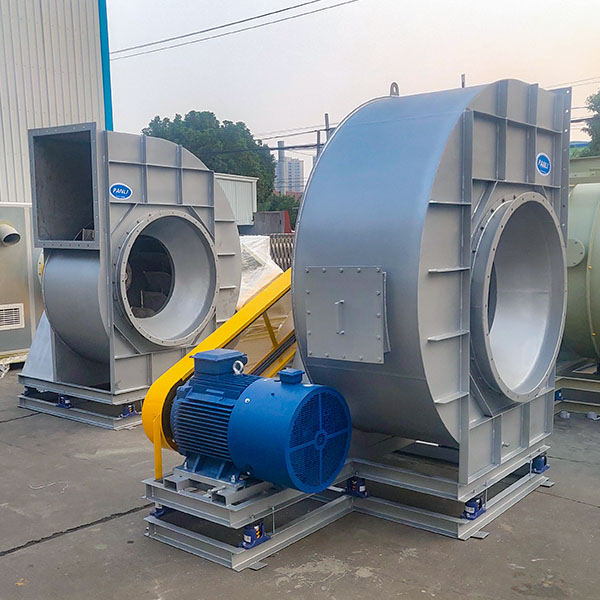

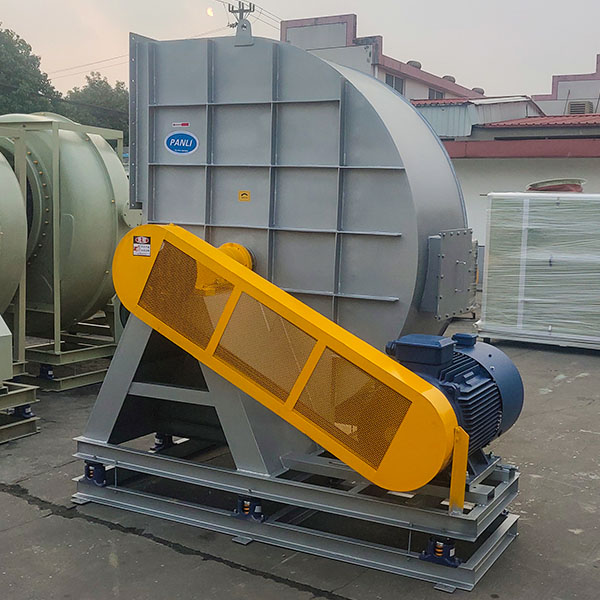

Stainless Steel Centrifugal Fan
Stainless Steel Centrifugal Fan
- Fan model: TPC 14C
- Fan air volume: 76531~112475 CMH
- Fan pressure: 3285-2357 Pa
- Rotor balance: ≤ 2.5 mm/s
- Operating temperature: 20 ℃~400 ℃
- Fan efficiency: ≥ 84.1%
- Fan speed: 1050 rpm
- Motor power: 110KW
- Air duct diameter: DN1300~DN1500 mm
- Fan color: Silver 【 SUS 316L 】
Product Introduction
The selection of raw materials for stainless steel fans is based on the actual gas composition in contact. By utilizing the unique characteristics of stainless steel itself, it can withstand some corrosive gases such as acetaldehyde, alcohol, acetone, acetylene, etc. It is equipped with anti rust and corrosion resistant variable frequency speed control motors, which are easy to operate, operate smoothly 24 hours a day, and can be used for a long time.
More than 20 patents have been certified, including high-tech enterprises, Jiangsu Province's Top 100 Su Shang Enterprises, AMCA members in the United States, Chinese integrity enterprises, and third-party testing qualifications. With a ten-year brand, we reduce worries and provide you with peace of mind when using.
Product Scenarios
Stainless steel centrifugal fans are suitable for environments such as chemical plants, electroplating plants, sewage tanks, new energy, experimental sites, and underground bases; Understanding the actual gas working conditions and distinguishing the corrosion levels of stainless steel mainly relies on technical experiments and practical experience. Reasonable data reflection helps in material selection and reduces the trouble of material corrosion. Regular maintenance can also save costs in operation.
The Stainless Steel Centrifugal Fan is a versatile and high-efficiency air handling device designed to provide medium to high-pressure airflow in corrosive, hygienic, or temperature-sensitive environments. Its all-stainless-steel construction guarantees maximum durability and long-term corrosion resistance, even under continuous operation in harsh industrial atmospheres.
The fan operates on the principle of centrifugal force — air enters axially and is accelerated radially through a backward-curved or straight-blade impeller, generating high pressure with low energy loss. Precision balancing ensures smooth and quiet performance, while the stainless steel volute casing and flanges provide leak-proof operation.
Both direct-drive and belt-drive configurations are available, depending on performance requirements. The fan supports multiple installation orientations and can be fitted with accessories such as silencers, dampers, or vibration isolators. For environments with volatile gases, an explosion-proof motor option is available.
Applications include food processing, cleanrooms, chemical exhaust, marine systems, and medical equipment ventilation. Thanks to its smooth internal surfaces, the fan is easy to clean and sterilize, making it suitable for environments with strict hygiene standards.
Combining high aerodynamic efficiency, structural stability, and resistance to chemical and environmental degradation, the Stainless Steel Centrifugal Fan is a reliable and adaptable solution for modern industrial ventilation and process air systems.
