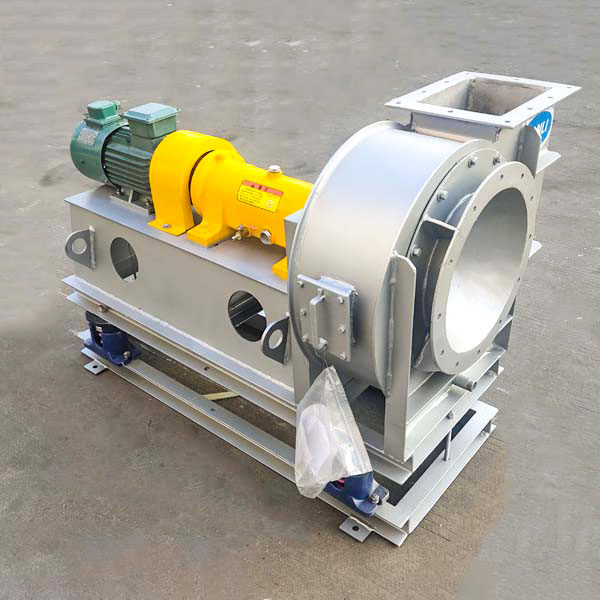

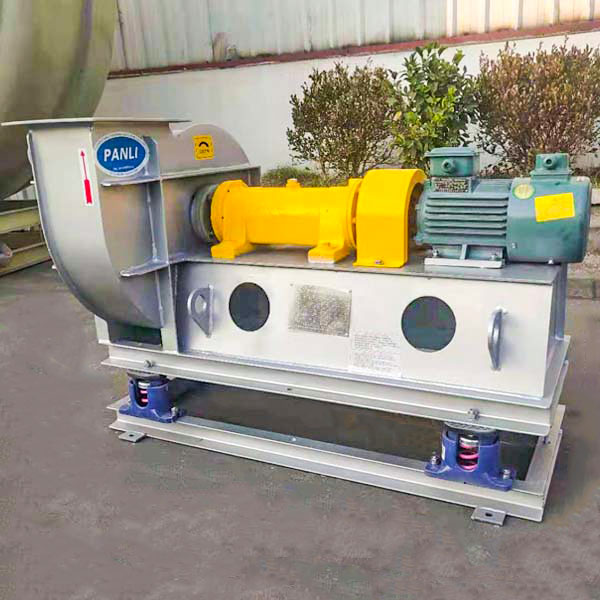

Stainless Steel High-Temperature Resistant Fan
Stainless Steel High-Temperature Resistant Fan
- Fan model: TPE 5.0C
- Fan air volume: 6668~9894 CMH
- Fan pressure: 4013~3044 Pa
- Rotor balance: ≤ 2.5 mm/s
- Operating temperature: ≤ 500 ℃
- Transmission method: Coupling transmission
- Fan speed: 2930 rpm
- Motor power: 11KW
- Air duct diameter: DN400~DN500 mm
- Fan material: SUS 304 or SUS 316L [color/silver]
Product Introduction
The daily standard number of stainless steel raw materials is SUS 316L, and the corresponding American standard mainly contains Cr, Ni, and Mo, according to the current version of GB/T 20878-2007; Each stainless steel fan raw material undergoes actual testing upon arrival at the factory, meets the requirements, and is then stored and manufactured under strict control.
Panli has ten years of brand experience and has passed the American AMCA certification, energy efficiency testing for ventilation fans, explosion-proof metal fan testing, and 72 hour on-site arrival. The manufacturer provides one-on-one after-sales service, technical support, and reliable use and service
Product Scenarios
Stainless steel high-temperature resistant fans are used in harsh chemical corrosive environments, and stainless steel materials are also required for pipeline materials. They are used in explosion-proof and anti-corrosion working environments. This product can only be manufactured by high-temperature resistant stainless steel fan manufacturers; So, for the high-temperature resistant 316L stainless steel fan, it is necessary to provide actual requirements to the stainless steel fan manufacturer for configuration and quotation. Understanding the working conditions provides reasonable suggestions for the future operation of the stainless steel fan, which helps in selection, reduces unnecessary trouble, and regular maintenance can save operating costs.
The Stainless Steel High-Temperature Resistant Fan is engineered for continuous operation in environments with elevated air or gas temperatures — typically up to 300°C (572°F), and optionally higher with custom cooling configurations. It is suitable for industrial furnaces, drying systems, heat-treatment lines, and thermal exhaust applications.
Fabricated from high-temperature stainless steel alloys, such as 310S or 316L, the fan maintains structural integrity and resistance to oxidation even under prolonged heat exposure. The impeller features thick, backward-curved blades designed to withstand centrifugal stress and thermal expansion without deformation.
A cooling wheel and air gap system isolates the motor from the hot airflow, while high-temperature-resistant bearings and seals ensure stable operation. The motor can be mounted externally or via shaft coupling to further protect it from heat.
The fan casing is thermally insulated and supported by a rigid frame with vibration-absorbing mounts. It can be equipped with thermocouples, temperature sensors, or pressure gauges for real-time monitoring.
Applications include industrial ovens, steel furnaces, kiln ventilation, powder drying, and exhaust systems in high-temperature environments. The Stainless Steel High-Temperature Resistant Fan ensures stable airflow, high efficiency, and exceptional mechanical strength where ordinary fans would fail.
With its advanced thermal design and corrosion-proof construction, this fan is a trusted solution for industries demanding both heat resistance and reliability in air movement systems.
