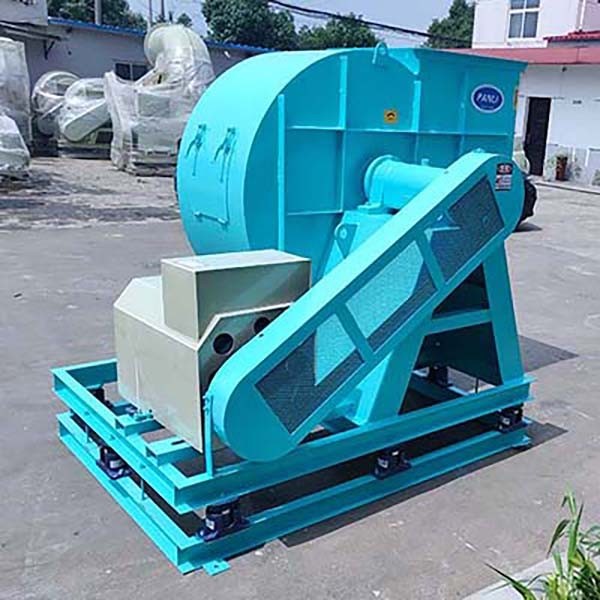

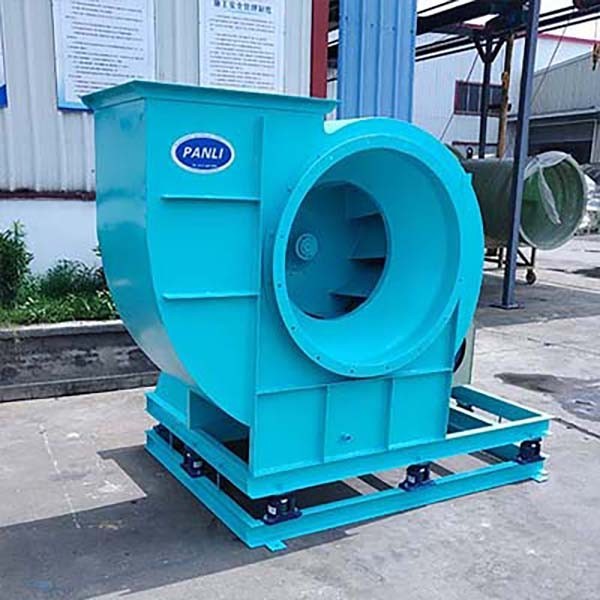

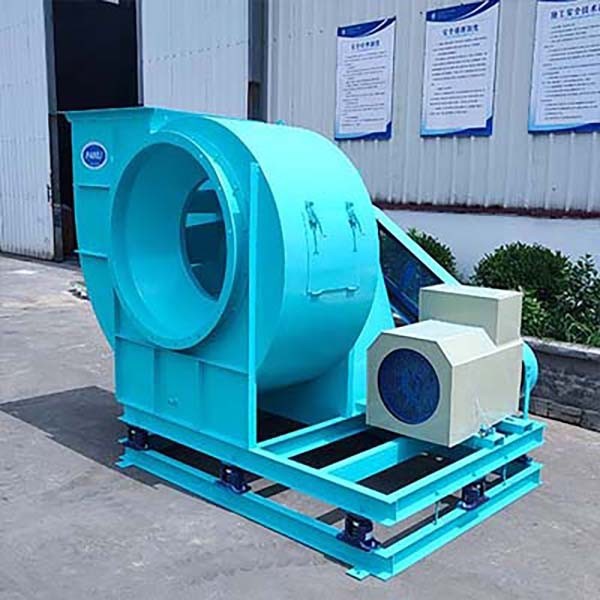

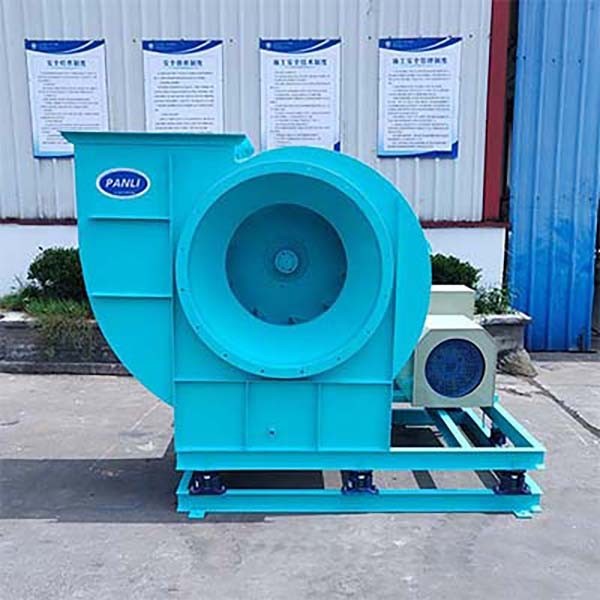

Throat Explosion-Proof Fan

Fan model: TPC 9.0 C
Fan air volume: 31515~44111 CMH
Fan pressure: 2956-2338 Pa
Balance level: ≤ G2.5 mm/s
Operating temperature: ≤ 80 ℃
Fan efficiency: ≥ 82.2%
Fan speed: 1600rpm
Motor power: 37KW
Air duct diameter: DN800~DN1000 M
Motor requirements: BT4 explosion-proof motor [support brand designation]

Product Introduction

The throat explosion-proof fan has been tested to comply with GB3836.1/2010 "General Requirements for Explosive Environmental Equipment and Explosion proof Shell" d "Protection Equipment". The fan equipment operates continuously for 24 hours without any faults, with a long service life and worry free safety.

Using CAD, CFD, Solidwords and other analysis and development software, the fan efficiency is ≥ 80%, and some machine numbers are ≥ 85%. According to the fan similarity law, the speed and horsepower ratio have a cubic relationship, and the higher the efficiency, the more energy consumption is saved, which is conducive to high efficiency and energy conservation.

Customization of centrifugal fan size, connection of fan inlet to air duct or wall to pipe installation (installation form: vertical or horizontal), saving installation space. Adopting BT4 level explosion-proof motor and anti-static belt, stable and reliable operation.

Applicable Scenarios

There are various ways to match the throat explosion-proof fan, including material replacement, research and development design, and material mechanics matching. It is suitable for flammable and explosive environments such as incinerators, catalytic combustion, RTO, RCO, VOCs organic exhaust, high-temperature exhaust, electronic semiconductor processes, and forced air supply. It can be customized one-on-one, with 24-hour online service from the manufacturer, long-term warranty, and lifelong maintenance.
